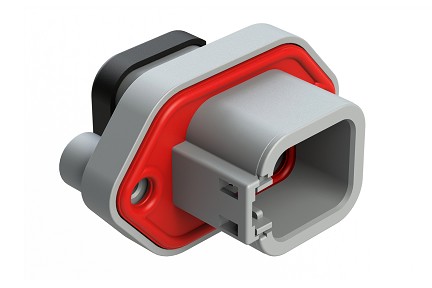

ATP04-6P-PM14 6 Position Panel Mount Receptacle with Flange, Pin, with Gasket, Reduced Diameter Seal, Self Tapping, End Cap, Grey. Requires Wedgelock AWP-6P
ATP04-6P-PM14 6 Position Panel Mount Receptacle with Flange, Pin, with Gasket, Reduced Diameter Seal, Self Tapping, End Cap, Grey. Requires Wedgelock AWP-6P
ATP04-6P-PM14 6 Position Panel Mount Receptacle with Flange, Pin, with Gasket, Reduced Diameter Seal, Self Tapping, End Cap, Grey. Requires Wedgelock AWP-6P
$0.00
Receptacle
PART NUMBER:
ATP04-6P-PM14
Datasheet
:
View / Download
3D Model
:
View/Download
6
Rectangular / Other
68
25
Plastic
SPECIFICATIONS:
No. of Positions:
6
Contact Size:
12
Amperage:
25A
Contacts Included:
No
Contact Type (Pin/Socket):
Pin
Gender:
Male
Wire Range:
10-14 AWG (6.0-2.0mm²)
Housing Material:
Thermoplastic
Voltage Rating:
250V
Shape:
Rectangular
Color:
Grey
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition)
Operating Temperature:
-55°C to +125°C
Seal Material:
Silicone Rubber
Seal Diameter:
3.40mm (.134") - 4.95mm (.195")
Seal Color:
Yellow
Dielectric Value:
Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms at 25°C
Mounting Style:
Panel Mount
Mating Cycle Durability:
>100
RoHS Compliant:
YES
Wedge Part#:
AWP-6P
Mating Part(s)*:
ATP06-6S* Plug
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
6 Position Panel Mount Receptacle with Flange, Pin, with Gasket, Reduced Diameter Seal, Self Tapping, End Cap, Grey
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~ATP|A Series~PanelMate
Connectors~Receptacles|Connectors~Pin (Male)|Connectors~Flange Mount|Connectors~Reduced Diameter Seal|Connectors~Panel Mount
