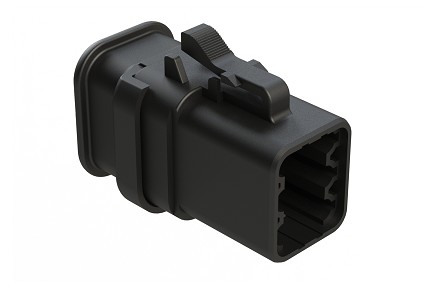

ATP06-6S-SR02BK 6 Position, Plug, Socket, SR02 Strain Relief (Reduced Diameter Seal), End Cap, Black Body. Requires Wedgelock AWP-6S
ATP06-6S-SR02BK 6 Position, Plug, Socket, SR02 Strain Relief (Reduced Diameter Seal), End Cap, Black Body. Requires Wedgelock AWP-6S
ATP06-6S-SR02BK 6 Position, Plug, Socket, SR02 Strain Relief (Reduced Diameter Seal), End Cap, Black Body. Requires Wedgelock AWP-6S
$0.00
Plug
PART NUMBER:
ATP06-6S-SR02BK
Datasheet
:
View / Download
3D Model
:
View/Download
6
Rectangular / Other
68
25
Plastic
SPECIFICATIONS:
No. of Positions:
6
Contact Size:
12
Amperage:
25A
Contacts Included:
No
Contact Type (Pin/Socket):
Pin
Gender:
Female
Wire Range:
12-14 AWG (4.0-2.0mm²)
Housing Material:
Thermoplastic
Voltage Rating:
250V
Shape:
Rectangular
Color:
Black
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition)
Operating Temperature:
-55°C to +125°C
Seal Material:
Silicone Rubber
Seal Diameter:
2.46" (.097") 4.01mm (.158")
Dielectric Value:
Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms at 25°C
Mating Cycle Durability:
>100
RoHS Compliant:
YES
Wedge Part#:
AWP-6S
Mating Part(s)*:
ATP04-6P* Receptacle
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
6 Position, Plug, Socket, SR02 Strain Relief (Reduced Diameter Seal), End Cap, Black Body
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~ATP
Connectors~Plugs|Connectors~Socket (Female)|Connectors~Strain Relief|Connectors~Reduced Diameter Seal
