Size 4 Contact 100A / 1000V

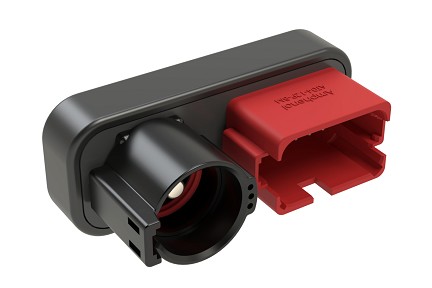

ATHD041-1X12PA14P-RAMR 20 Position Power Splitter Control Module, 4 Pin x 2 and 12 Pin x 1 Device Layout, Nickel Plated Contacts, Right Angle Mount, Black / Red
ATHD041-1X12PA14P-RAMR 20 Position Power Splitter Control Module, 4 Pin x 2 and 12 Pin x 1 Device Layout, Nickel Plated Contacts, Right Angle Mount, Black / Red
ATHD041-1X12PA14P-RAMR 20 Position Power Splitter Control Module, 4 Pin x 2 and 12 Pin x 1 Device Layout, Nickel Plated Contacts, Right Angle Mount, Black / Red
$0.00
Power Splitter Module
PART NUMBER:
ATHD041-1X12PA14P-RAMR
Datasheet
:
View / Download
20
Rectangular / Other
69
100
Plastic
SPECIFICATIONS:
No. of Positions:
20
Contact Size:
16,4
Contact Type (Pin/Socket):
Pin
Gender:
Male
Amperage:
13A / 100A Total
Contacts Included:
Yes
Voltage:
250V
Housing Material:
Thermoplastic
Operating Temperature:
-55°C to +125°C
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Contact Plating:
Nickel
Contact Material:
Copper Alloy
Shape:
Rectangular
Color:
Black/Red
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
RoHS Compliant:
Yes
Mating Cycle Durability:
100
Mating Part(s)*:
ATHD06-1-4S*, AT06-12SA*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
20 Position Power Splitter Control Module, 4 Pin x 2 and 12 Pin x 1 Device Layout, Nickel Plated Contacts, Right Angle Mount, Black / Red
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~AT | A Series~HYPERBUSS | A Series~ATHD
250
Connectors~Power Splitter Module
