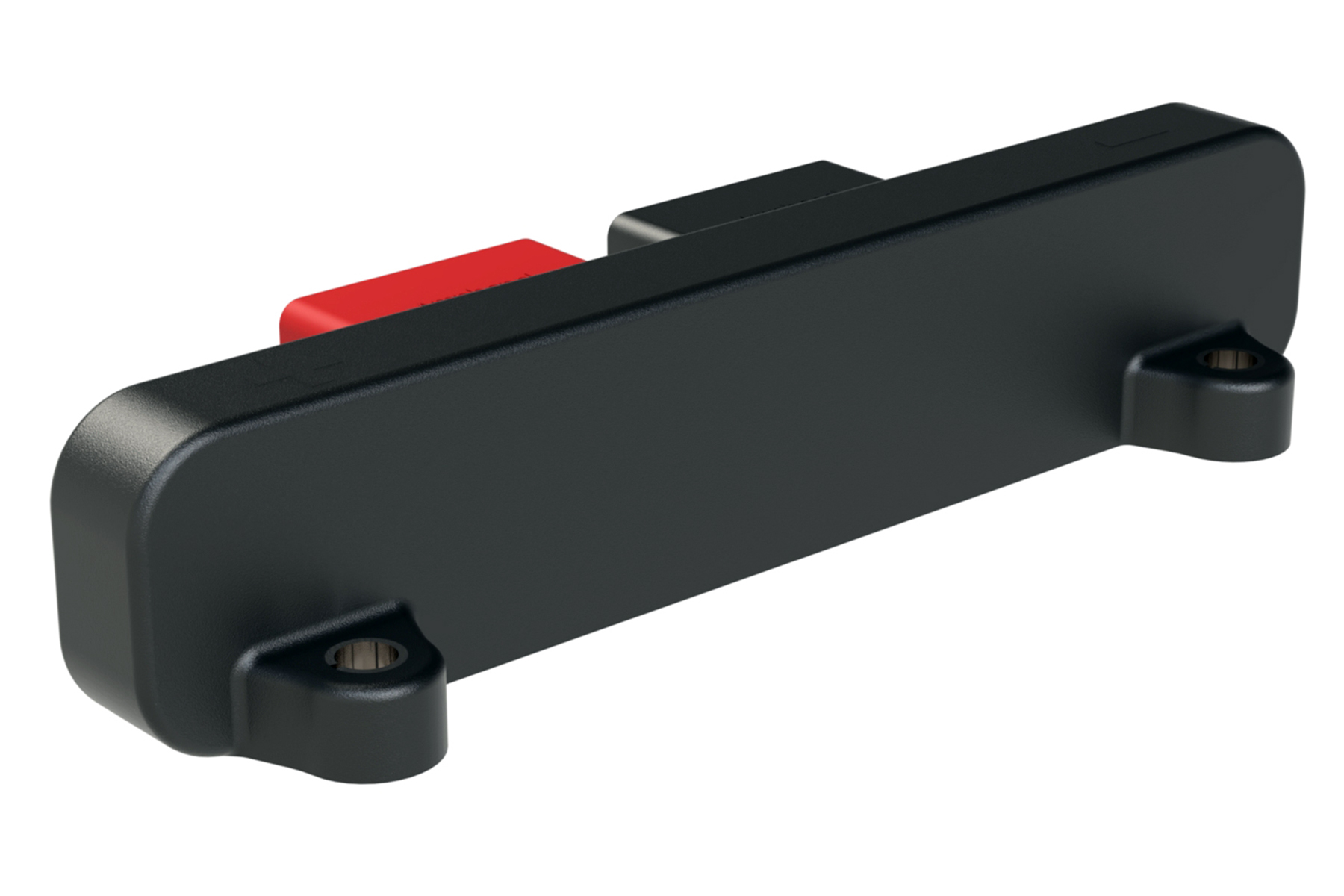

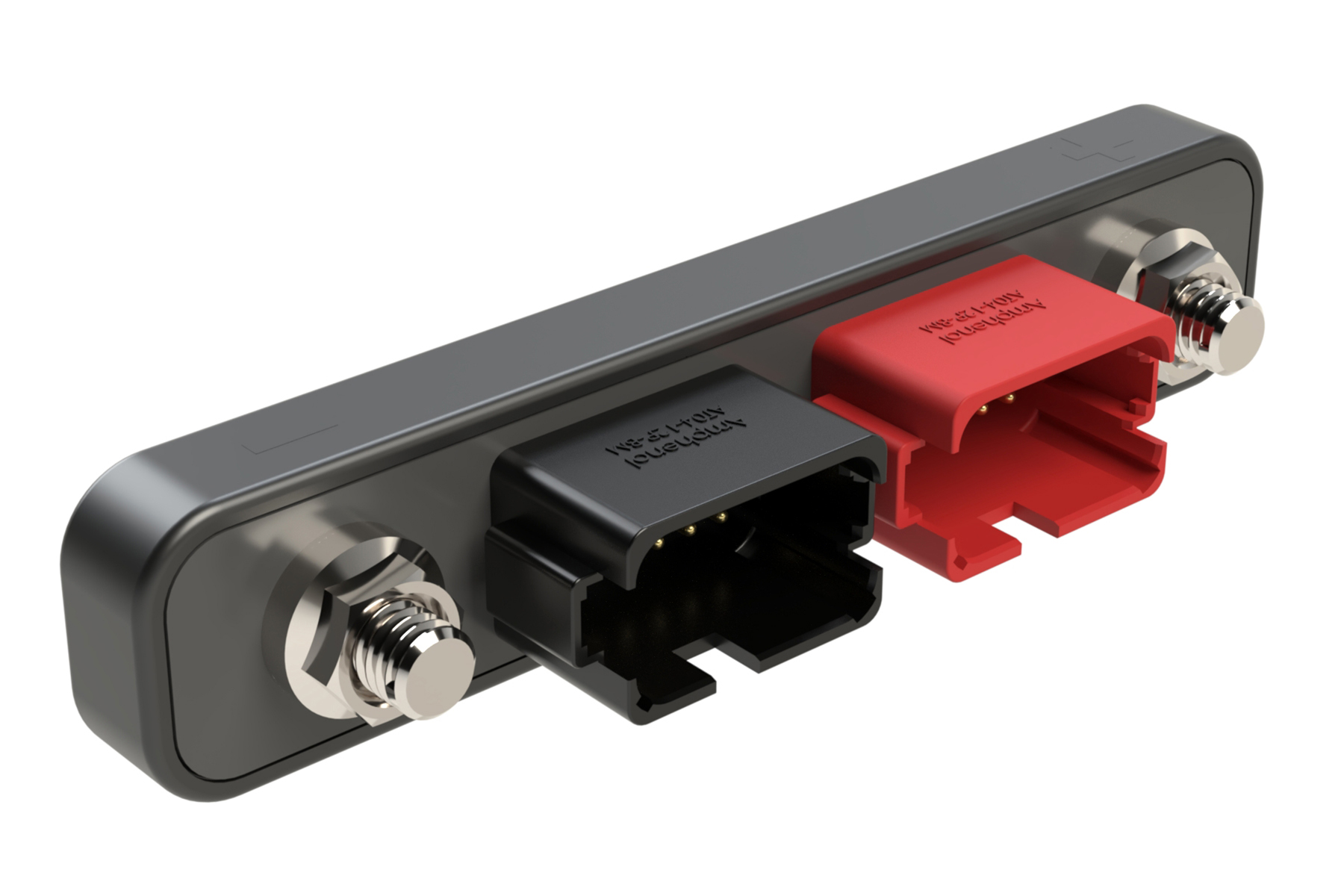

AT04-2X12PATS01-RAMRB 26 Position Power Splitter Control Module, 2 Threaded Studs and 12 Pin x 2 Device Layout, Nickel Plated Contacts, Right Angle Mount, Black / Red
AT04-2X12PATS01-RAMRB 26 Position Power Splitter Control Module, 2 Threaded Studs and 12 Pin x 2 Device Layout, Nickel Plated Contacts, Right Angle Mount, Black / Red
AT04-2X12PATS01-RAMRB 26 Position Power Splitter Control Module, 2 Threaded Studs and 12 Pin x 2 Device Layout, Nickel Plated Contacts, Right Angle Mount, Black / Red
$0.00
Power Splitter Module
PART NUMBER:
AT04-2X12PATS01-RAMRB
Datasheet
:
View / Download
26
Rectangular / Other
69
150
Plastic
SPECIFICATIONS:
No. of Positions:
26
Contact Size:
16
Contact Type (Pin/Socket):
Pin
Gender:
Male
Amperage:
13A / 150A Total
Contacts Included:
Yes
Voltage:
250V
Housing Material:
Thermoplastic
Operating Temperature:
-55°C to +125°C
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Contact Plating:
Nickel
Contact Material:
Copper Alloy
Shape:
Rectangular
Color:
Black/Red
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
RoHS Compliant:
Yes
Mating Cycle Durability:
100
Mating Part(s)*:
AT06-12SA*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
26 Position Power Splitter Control Module, 2 Threaded Studs and 12 Pin x 2 Device Layout, Nickel Plated Contacts, Right Angle Mount, Black / Red
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~AT | A Series~HYPERBUSS
250
Connectors~Power Splitter Module
