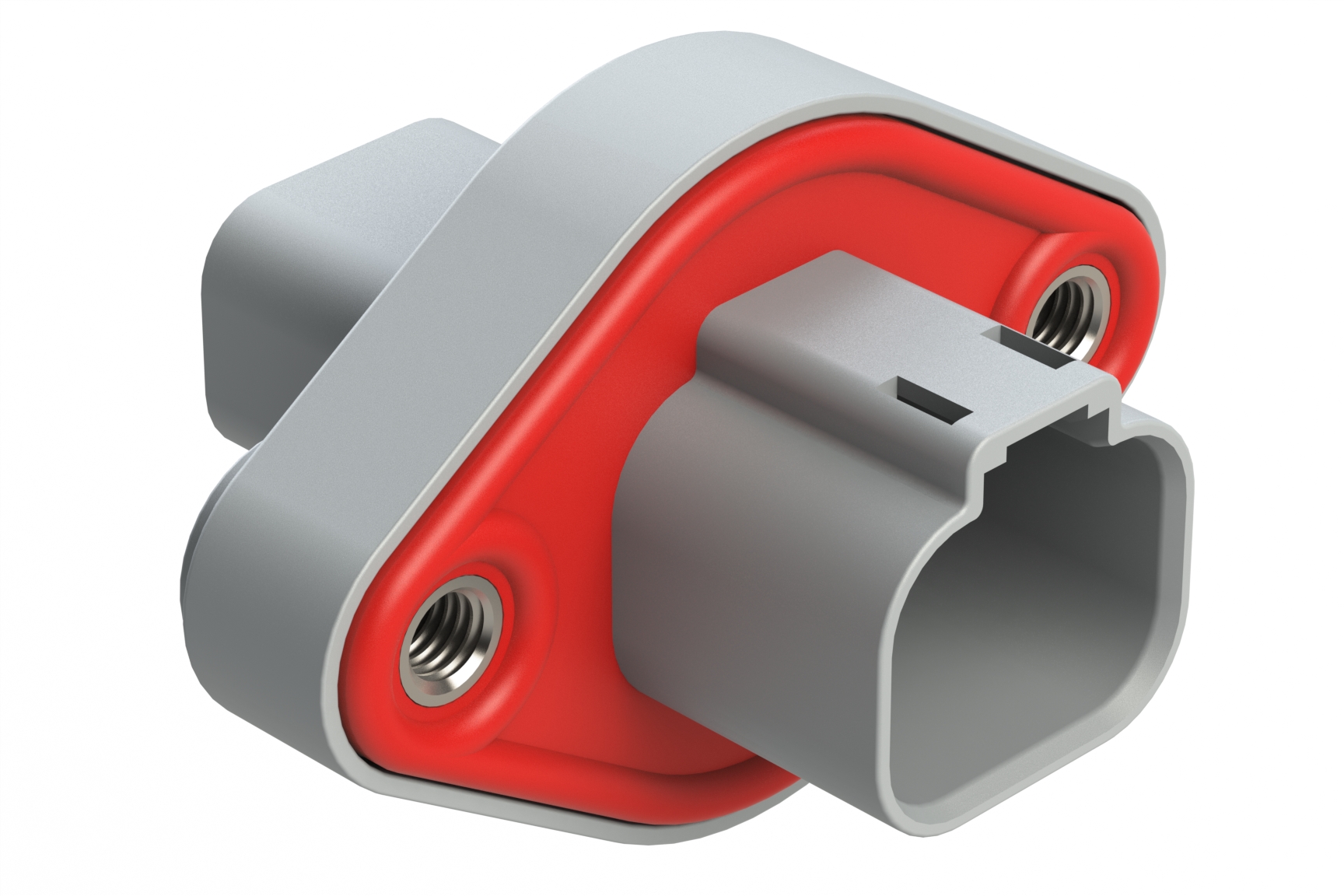

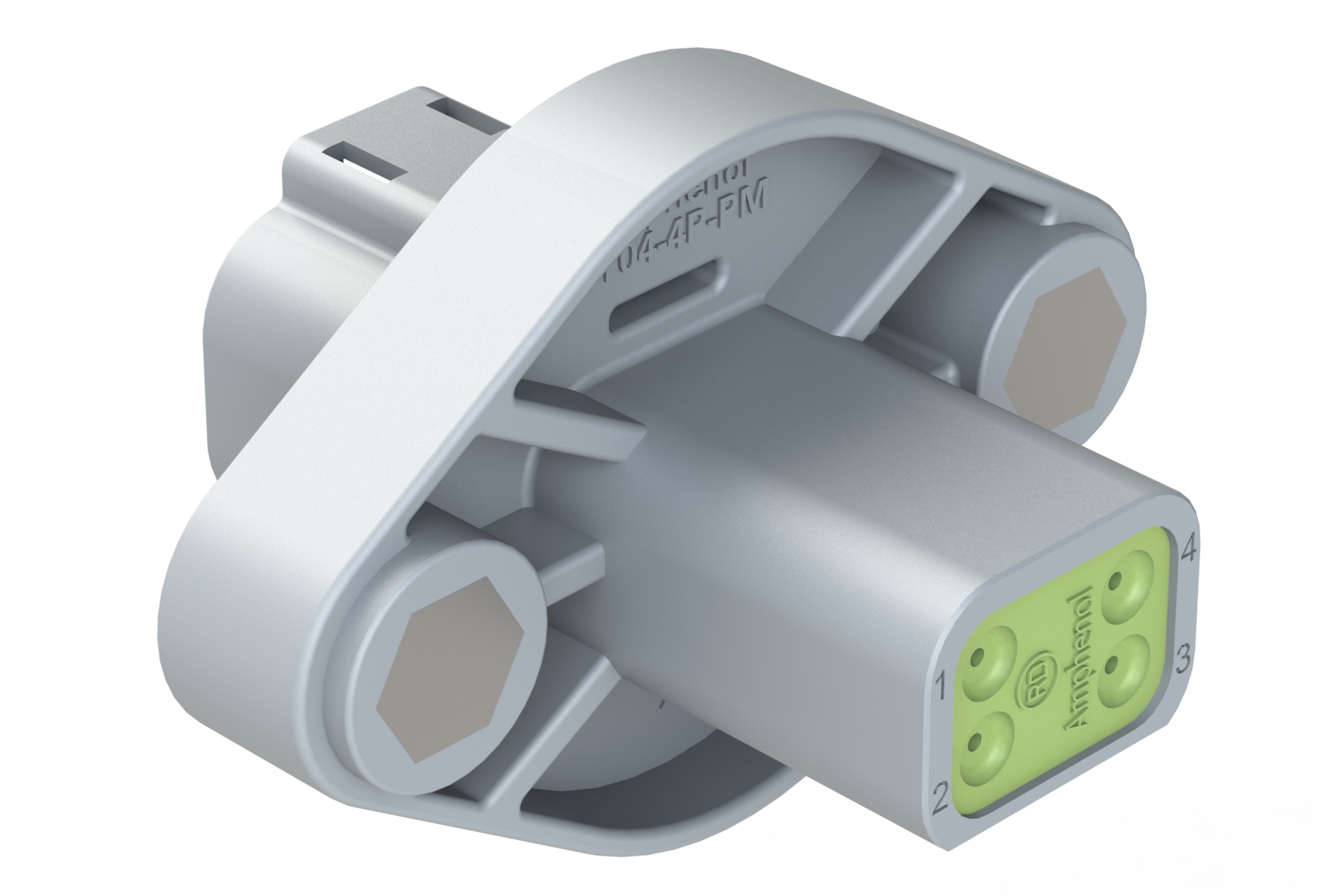

AT04-4P-PM06 4 Position Panel Mount Receptacle with Flange, Pin, Self-Threading, Integrated Latch, Gasket, Reduced Diameter Rear Seal, Grey
AT04-4P-PM06 4 Position Panel Mount Receptacle with Flange, Pin, Self-Threading, Integrated Latch, Gasket, Reduced Diameter Rear Seal, Grey

AT04-4P-PM06 4 Position Panel Mount Receptacle with Flange, Pin, Self-Threading, Integrated Latch, Gasket, Reduced Diameter Rear Seal, Grey

$0.00
Receptacle, Panel Mount
PART NUMBER: AT04-4P-PM06
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Positions: 4
  • Contact Size: 16
  • Contact Type (Pin/Socket): Pin
  • Gender: Male
  • Contacts Included: No
  • Amperage: 13A
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Housing Material: Thermoplastic
  • Voltage: 250V
  • Operating Temperature: -55°C to 125°C
  • IP Rating: IP68 (1M of water for a period of 24 hours, mated condition) & IP69k (in mated condition)
  • Shape: Rectangular
  • Color: Grey
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @1500 volts AC
  • Insulation Resistance: 1000 megohms min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 1.35mm (.053") - 3.05 mm (.120")
  • Seal Color: Green
  • RoHS Compliant: Yes
  • Mounting Type: Flange Mount
  • Mating Cycle Durability: >100
  • Wedge Part #: AW4P
  • Mating Part(s)*: AT06-4S* Plug
4 Position Panel Mount Receptacle with Flange, Pin, Self-Threading, Integrated Latch, Gasket, Reduced Diameter Rear Seal, Grey
