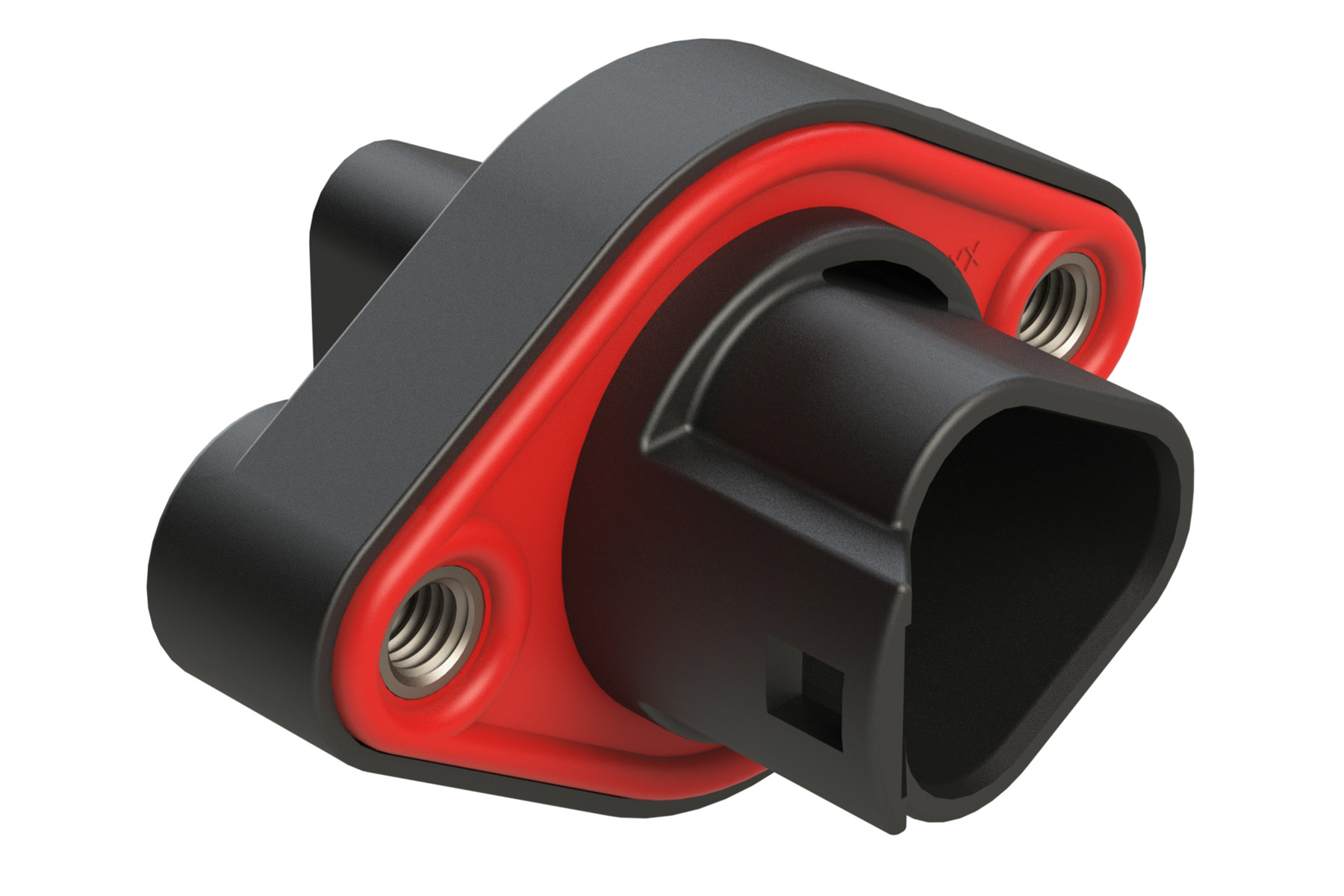

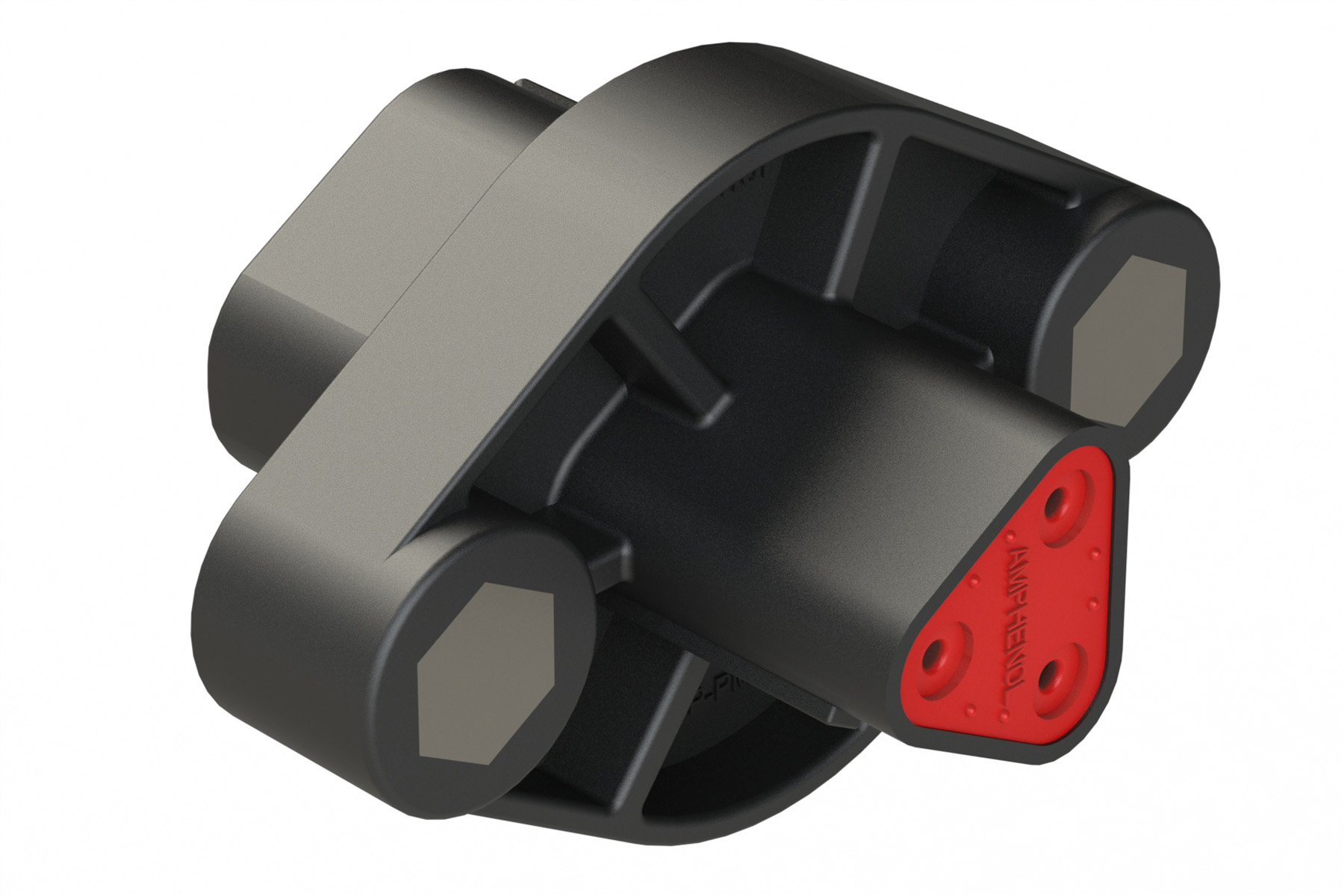

AT04-3P-PML05BLK 3 Position Panel Mount Receptacle with Vertical Flange, Pin, Threaded Insert, Integrated Latch, Gasket, Black
AT04-3P-PML05BLK 3 Position Panel Mount Receptacle with Vertical Flange, Pin, Threaded Insert, Integrated Latch, Gasket, Black

AT04-3P-PML05BLK 3 Position Panel Mount Receptacle with Vertical Flange, Pin, Threaded Insert, Integrated Latch, Gasket, Black

$0.00
Receptacle, Panel Mount
PART NUMBER: AT04-3P-PML05BLK
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Positions: 3
  • Contact Size: 16
  • Contact Type (Pin/Socket): Pin
  • Gender: Male
  • Contacts Included: No
  • Amperage: 13A
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Housing Material: Thermoplastic
  • Voltage: 250V
  • Operating Temperature: -55°C to 125°C
  • IP Rating: IP68 (1M of water for a period of 24 hours, mated condition) & IP69k (in mated condition)
  • Shape: Rectangular
  • Color: Black
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @1500 volts AC
  • Insulation Resistance: 1000 megohms min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
  • Seal Color: Red
  • RoHS Compliant: Yes
  • Mounting Type: Flange Mount
  • Mating Cycle Durability: >100
  • Wedge Part #: AW3P
  • Mating Part(s)*: AT06-3S* Plug
3 Position Panel Mount Receptacle with Vertical Flange, Pin, Threaded Insert, Integrated Latch, Gasket, Black
