Duramate AHDP 24-07 CL22

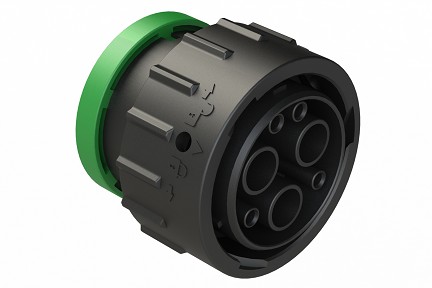

AHDP06-24-07SN-BRACL22 7 Positions, Plug, Socket, Shell Size 24, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on), CL22. Comparable to PN# HDP26-24-7SN-CL22
AHDP06-24-07SN-BRACL22 7 Positions, Plug, Socket, Shell Size 24, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on), CL22. Comparable to PN# HDP26-24-7SN-CL22
AHDP06-24-07SN-BRACL22 7 Positions, Plug, Socket, Shell Size 24, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on), CL22. Comparable to PN# HDP26-24-7SN-CL22
$0.00
Plug
PART NUMBER:
AHDP06-24-07SN-BRACL22
Datasheet
:
View / Download
3D Model
:
View/Download
Circular
69
100
Plastic
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
7
Contact Size(s):
4,16
Contact Type (Pin/Socket):
Socket
Contacts Included?:
No
Gender:
Female (Standard)
Wire Range:
4 AWG (25.0-21.0 mm²), 14-20 AWG (2.0-0.5mm²)
Amperage:
13A/100A
Housing Material:
Thermoplastic
Voltage:
250 V
Operating Temperature:
-55°C to +125°C
Color:
Black
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
Seal Material:
Silicone Rubber
Seal Diameter:
7.90mm (.311") - 10.67mm (.420") / 2.54mm (.100") - 3.40mm (.134")
Seal Color:
Green
Rear Seal Type:
Normal
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @1500 volts AC
Insulation Resistance:
1000 Megaohm min @ 25°C
RoHS Compliant?:
Yes
Mating Cycle Durability:
>100
Mating Part*:
AHDP04-24-07P*CL22 & AHDP02-24-07P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
AHDP06-24-07SN-BRACL22 7 Positions, Plug, Socket, Shell Size 24, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on), CL22
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Plugs|Connectors~Socket (Female)
Related Items
A114017 Seal Plugs, White, Fits Sizes 12, 16. Comparable to PNs# 114017, 114017-ZZ, 934941000
REQUEST A QUOTE
AHDP02-24-07PN-BRACL22 7 Positions, Sealed Panel Mount Receptacle, Pin, Shell Size 24, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on), CL22
REQUEST A QUOTE
AHDP02-24-07PN-SRACL22 7 positions, sealed panel mount receptacle, pin, size 24, normal seal, smooth ring adapter
REQUEST A QUOTE
AHDP02-24-07PN-WTACL22 7 Positions, Sealed Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal, Wide Thread Adapter
REQUEST A QUOTE
AHDP04-24-07PN-BRACL22 7 Positions, Receptacle, Pin, Shell Size 24, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap-on), CL22, Comparable to PN# HDP24-24-7PN-CL22
REQUEST A QUOTE
AHDP04-24-07PN-SRACL22 Size 24 receptacle, 7 position, pin, standard arrangement, normal seal, smooth ring adapter. Comparable to PN# HDP24-24-7PN-C038
REQUEST A QUOTE
AHDP04-24-07PN-WTACL22 7 position, Size 24 Receptacle, Pin Contact, Standard Diameter Seal. Comparable to PN#HDP24-24-7PN-CL22,HDP24-24-7PN-C038
REQUEST A QUOTE
AHDP06-24-07SN-SRACL22 Size 24 plug, 7 positions, socket, standard arrangement, normal seal, smooth ring adapter. Comparable to PN# HDP26-24-7SN-C038
REQUEST A QUOTE
AHDP06-24-07SN-WTACL22 7 position, Size 24 Plug, Socket Contact, Standard Diameter Seal. Comparable to PN# HDP26-24-7SN-CL22
REQUEST A QUOTE
AHDPBS-11L017-2405 Shell Size 24 Snap Over Right Angle Backshell Cover for Backshell Ring Adapter Connectors (*-BRA). Comparable to PN# 2428-011-2405
REQUEST A QUOTE
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
REQUEST A QUOTE
AT114009 Contact removal tool, Size 4, 6 AWG. Comparable to PN# 114009
REQUEST A QUOTE
AT62-14-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0122
REQUEST A QUOTE
AT62-14-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-14-0144
REQUEST A QUOTE
AT62-16-0122 Size 16 Stamped & Formed Socket Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0122
REQUEST A QUOTE
AT62-16-0144 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1062-16-0144
REQUEST A QUOTE
AT62-16-0822 Size 16 Stamped & Formed Socket Contact, Nickel Plating,13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT62-16-0844 Size 16 Stamped & Formed Socket Contact, Gold Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT62-201-16141 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-16141
REQUEST A QUOTE
AT62-201-16141-22 Size 16 Machined Socket Contact, Nickel Plating, 13A, Wire Range 22-24AWG,
REQUEST A QUOTE
AT62-201-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PN# 0462-201-1631
REQUEST A QUOTE
AT62-201-1631-22 Size 16 Machined Socket Contact, Gold Plating, 13A, Wire Range 22-24AWG
REQUEST A QUOTE
AT62-201-16NKIT Size 16 Machined Contact Kit AT62-201-16141. Socket Contacts, Nickel Plating, 13A, Wire Range 16-20 AWG, (10 pieces)
REQUEST A QUOTE
AT62-203-04141 Size 4 Machined Socket Contact, Nickel Plating, 100A, Wire Range 6AWG. Comparable to PN# 0462-203-04141
REQUEST A QUOTE
AT62-203-04141-4 Size 4 Machined Socket Contact, Nickel Plating, 100A, Wire Range 4AWG. Comparable to PN# 5962-203-04141
REQUEST A QUOTE
AT62-209-16141 Size 16 Solid Machined Socket Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-16141
REQUEST A QUOTE
AT62-209-1631 Size 16 Solid Machined Socket Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0462-209-1631
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-16 Size 16 Contact Adjustable Crimping Tool
REQUEST A QUOTE
WA23-11 Contact Locater, Size 4
REQUEST A QUOTE
