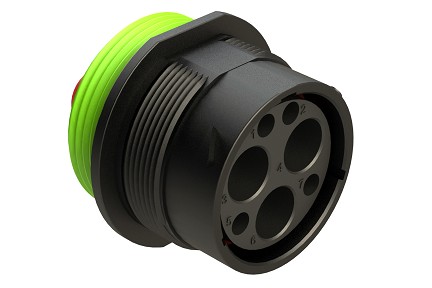

  7. AHDP04-24-07PN-WTACL22 7 position, Size 24 Receptacle, Pin Contact, Standard Diameter Seal. Comparable to PN#HDP24-24-7PN-CL22,HDP24-24-7PN-C038
AHDP04-24-07PN-WTACL22 7 position, Size 24 Receptacle, Pin Contact, Standard Diameter Seal. Comparable to PN#HDP24-24-7PN-CL22,HDP24-24-7PN-C038
AHDP04-24-07PN-WTACL22 7 position, Size 24 Receptacle, Pin Contact, Standard Diameter Seal. Comparable to PN#HDP24-24-7PN-CL22,HDP24-24-7PN-C038

AHDP04-24-07PN-WTACL22 7 position, Size 24 Receptacle, Pin Contact, Standard Diameter Seal. Comparable to PN#HDP24-24-7PN-CL22,HDP24-24-7PN-C038

$0.00
Receptacle
PART NUMBER: AHDP04-24-07PN-WTACL22
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 7
  • Contact Size(s): 4,16
  • Contacts Included: No
  • Contact Type (Pin/Socket): Pin
  • Gender: Male (Standard)
  • Wire Range: 4 AWG (25.0-21.0mm²), 14-20 AWG (2.0-0.5mm²)
  • Housing Material: Thermoplastic
  • Voltage Rating: 250V
  • Shape: Circular
  • Color: Black
  • IP Rating: IP67 & IP69k (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 7.90mm (.311") - 10.67mm (.420") / 2.54mm (.100") - 3.40mm (.134")
  • Seal Color: Red
  • Rear Seal Type: Normal Diameter Seal
  • Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Mating Part(s)*: AHDP06-24-07S*CL22
