Duramate AHDP 24-07 CL22

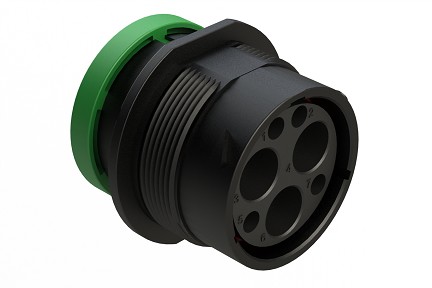

AHDP04-24-07PN-BRACL22 7 Positions, Receptacle, Pin, Shell Size 24, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap-on), CL22, Comparable to PN# HDP24-24-7PN-CL22
AHDP04-24-07PN-BRACL22 7 Positions, Receptacle, Pin, Shell Size 24, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap-on), CL22, Comparable to PN# HDP24-24-7PN-CL22
AHDP04-24-07PN-BRACL22 7 Positions, Receptacle, Pin, Shell Size 24, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap-on), CL22, Comparable to PN# HDP24-24-7PN-CL22
$0.00
Receptacle
PART NUMBER:
AHDP04-24-07PN-BRACL22
Datasheet
:
View / Download
3D Model
:
View/Download
Circular
69
100
Plastic
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
7
Contact Size(s):
4,16
Contact Type (Pin/Socket):
Pin
Contacts Included?:
No
Gender:
Male (Standard)
Wire Range:
4 AWG (25.0-21.0 mm²), 14-20 AWG (2.0-0.5mm²)
Amperage:
13A/100A
Housing Material:
Thermoplastic
Voltage:
250 V
Operating Temperature:
-55°C to +125°C
Color:
Black
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
Seal Material:
Silicone Rubber
Seal Diameter:
7.90mm (.311") - 10.67mm (.420") / 2.54mm (.100") -3.40mm (.134")
Seal Color:
Green
Rear Seal Type:
Normal
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 Megaohm min @ 25°C
RoHS Compliant?:
Yes
Mating Cycle Durability:
>100
Mating Part*:
AHDP06-24-07S*CL22
