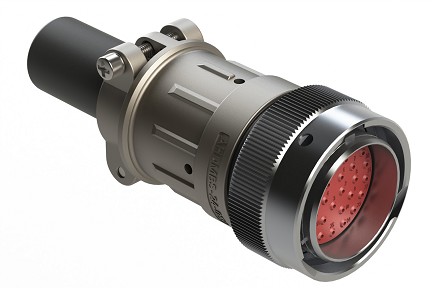

AHDM06-24-33PN-059 33 Position Plug KitShell Size 24, Pin, Plastic, Normal Diameter Rear Seal, Integrated Wide Thread (Green Retaining Ring), Cable Clamp Backshell. Comparable to PN# HD36-24-33PN-059
AHDM06-24-33PN-059 33 Position Plug KitShell Size 24, Pin, Plastic, Normal Diameter Rear Seal, Integrated Wide Thread (Green Retaining Ring), Cable Clamp Backshell. Comparable to PN# HD36-24-33PN-059
AHDM06-24-33PN-059 33 Position Plug KitShell Size 24, Pin, Plastic, Normal Diameter Rear Seal, Integrated Wide Thread (Green Retaining Ring), Cable Clamp Backshell. Comparable to PN# HD36-24-33PN-059
$0.00
Plug Kit
PART NUMBER:
AHDM06-24-33PN-059
Datasheet
:
View / Download
33
Circular
69
7.5
Metal
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
33
Contact Size:
20
Contact Type (Pin/Socket):
Pin
Gender:
Male
Amperage:
7.5
Wire Range:
16-22 AWG (1.5-0.35mm²)
Voltage:
250
Housing Material:
Zinc & Aluminium Alloy
Operating Temperature:
-55°C to +125°C
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Color:
Black
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms at 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Rear Seal Color Coded Adaptor:
Green
Mating Cycle Durability:
>100
RoHS Compliant:
YES
Mating Part(s)*:
AHDM06-24-33S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
33 Position Plug KitShell Size 24, Pin, Plastic, Normal Diameter Rear Seal, Integrated Wide Thread (Green Retaining Ring), Cable Clamp Backshell. Comparable to PN# HD36-24-33PN-059
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Plugs|Connectors~Pin (Male)
