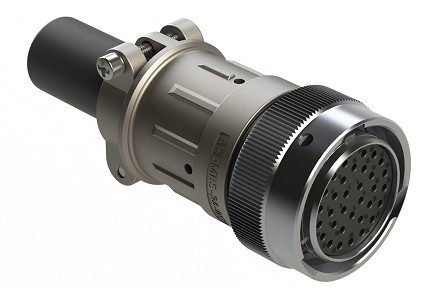

AHDM06-24-33SN-059 33 Position Plug Kit, Shell Size 24, Socket, Plastic, Normal Diameter Rear Seal Integrated Wide Thread (Green Retaining Ring), Cable Clamp Backshell. Comparable to PN# HD36-24-33SN-059
AHDM06-24-33SN-059 33 Position Plug Kit, Shell Size 24, Socket, Plastic, Normal Diameter Rear Seal Integrated Wide Thread (Green Retaining Ring), Cable Clamp Backshell. Comparable to PN# HD36-24-33SN-059
AHDM06-24-33SN-059 33 Position Plug Kit, Shell Size 24, Socket, Plastic, Normal Diameter Rear Seal Integrated Wide Thread (Green Retaining Ring), Cable Clamp Backshell. Comparable to PN# HD36-24-33SN-059
$0.00
Plug Kit
PART NUMBER:
AHDM06-24-33SN-059
Datasheet
:
View / Download
33
Circular
69
7.5
Metal
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
33
Contact Size:
20
Contact Type (Pin/Socket):
Socket
Gender:
Female
Amperage:
7.5
Wire Range:
16-22 AWG (1.5-0.35mm²)
Voltage:
250
Housing Material:
Zinc & Aluminium Alloy
Operating Temperature:
-55°C to +125°C
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Color:
Black
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms at 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Rear Seal Color Coded Adaptor:
Green
Mating Cycle Durability:
>100
RoHS Compliant:
YES
Mating Part(s)*:
AHDM04-24-33P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
33 Position Plug Kit, Shell Size 24, Socket, Plastic, Normal Diameter Rear Seal Integrated Wide Thread (Green Retaining Ring), Cable Clamp Backshell. Comparable to PN# HD36-24-33SN-059
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Plugs|Connectors~Socket (Female)
