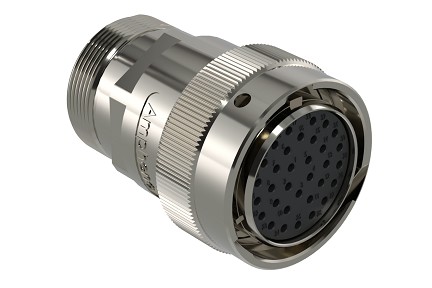

AHDM06-24-33SN-L005 33 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-33SN-L005
AHDM06-24-33SN-L005 33 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-33SN-L005
AHDM06-24-33SN-L005 33 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-33SN-L005
$0.00
Plug
PART NUMBER:
AHDM06-24-33SN-L005
Datasheet
:
View / Download
33
Circular
69
7.5
Metal
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
33
Contact Size:
20
Contact Type (Pin/Socket):
Socket
Gender:
Female
Contacts Included:
No
Amperage:
7.5A
Wire Range:
16-22 AWG (1.5-0.5mm²), 14-20 AWG (2.0-0.5mm²)
Voltage Rating:
250V
Housing Material:
Zinc Alloy, Nickel Plated
Operating Temperature:
'-55°C TO +125°C
IP Rating:
IP67 & IP69K (in mated condition)
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Seal Diameter:
1.02mm (.040") - 2.41mm (.095")
Rear Seal Type:
Normal Diameter Seal
Seal Color Coded Adaptor:
Green
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mounting Style:
Free Hanging
Mating Part*:
AHDM04-24-33P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
33 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-33SN-L005
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Plugs|Connectors~Socket (Female)
Related Items
A112263-90 Nut, AHDM Series, SIZE 24. Comparable to PN# 112263-90
REQUEST A QUOTE
A112264 Lockwasher, AHDM Series, SIZE 24. Comparable to PNs# 112264, 112264-ZZ
REQUEST A QUOTE
AHDC36-24 Protective cap for RECEPTACLE, AHDM Series, SIZE 24. Comparable to PN# HDC36-24
REQUEST A QUOTE
AHDM04-24-33PN 33 Position Receptacle, Shell Size 24, Pin, Plastic, Normal Diameter Rear Seal, Integrated Wide Thread (Green Retaining Ring). Comparable to PN# HD34-24-33PN
REQUEST A QUOTE
AHDM04-24-33PN-059 33 Position Receptacle Kit, Shell Size 24, Pin, Plastic, Normal Diameter Rear Seal, Integrated Wide Thread (Green Retaining Ring), Cable Clamp Backshell. Comparable to PN# HD34-24-33PN-059
REQUEST A QUOTE
AHDM04-24-33PN-072 33 Position Receptacle, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-33PN-072
REQUEST A QUOTE
AHDM04-24-33PN-L005 33 Position Receptacle, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-33PN-L005
REQUEST A QUOTE
AHDM04-24-33SN 33 Position Receptacle, Shell Size 24, Socket, Plastic, Normal Diameter Rear Seal, Integrated Wide Thread (Green Retaining Ring). Comparable to PN# HD34-24-33SN
REQUEST A QUOTE
AHDM04-24-33SN-059 33 Position Receptacle Kit, Shell Size 24, Socket, Plastic, Normal Diameter Rear Seal, Integrated Wide Thread (Green Retaining Ring), Cable Clamp Backshell. Comparable to PN# HD34-24-33SN-059
REQUEST A QUOTE
AHDM04-24-33SN-L005 33 Position Receptacle, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-33SN-L005
REQUEST A QUOTE
AHDM06-24-33SN 33 Position Plug, Shell Size 24, Socket, Plastic, Normal Diameter Rear Seal, Integrated Wide Thread (Green Retaining Ring). Comparable to PN# HD36-24-33SN
REQUEST A QUOTE
AHDM06-24-33SN-059 33 Position Plug Kit, Shell Size 24, Socket, Plastic, Normal Diameter Rear Seal Integrated Wide Thread (Green Retaining Ring), Cable Clamp Backshell. Comparable to PN# HD36-24-33SN-059
REQUEST A QUOTE
AHDM06-24-33SN-072 33 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-33SN-072
REQUEST A QUOTE
AHDMBS-24-001 Size 24 Straight Backshell, Tie Wrap End Bell
REQUEST A QUOTE
AHDMBS-24-002 Backshell, Size 24, AHDM Series, 2 pc
REQUEST A QUOTE
AHDMBS-24-059 Backshell with cable clamp, size 24
REQUEST A QUOTE
AHDM-BS-24NUT Adapter for tube Backshell, AHDM, SIZE 24,
REQUEST A QUOTE
AHDMBS-24-SM01 Size 24 Backshell, Metal
REQUEST A QUOTE
AHDP-16-04477 Rubber Flange Seal, shell size 24. Comparable to PN# 16-04477
REQUEST A QUOTE
AHDPM24-BT Size 24 Rubber Boot for DuraMate AHDP (SRA only) & AHDM, PVC, Grey. Comparable to PN# HD30-24BT
REQUEST A QUOTE
AHDPM24-BT-BK Size 24 Rubber Boot for DuraMate AHDP (SRA only) & AHDM, PVC, Black. Comparable to PN# HD30-24BT-BK
REQUEST A QUOTE
AT11-240-2005 Contact Removal Tool, plastic, Size 20. Comparable to PN# 0411-240-2005
REQUEST A QUOTE
AT13-204-2005 Seal Plug, White, Size 20. Comparable to PN# 0413-204-2005
REQUEST A QUOTE
AT62-005-20141 Size 20 Solid Machined Socket Contact, Nickel Plating, 7.5A, Wire Range 16-18AWG. Comparable to PN# 0462-005-20141
REQUEST A QUOTE
AT62-005-2031 Size 20 Solid Machined Socket Contact, Gold Plating, 7.5A, Wire Range 16-18AWG. Comparable to PN# 0462-005-2031
REQUEST A QUOTE
AT62-20-0122 Size 20 Stamped & Formed Socket Contact, Nickel Plating, 7.5A, Wire Range 16-22AWG. 4000 pcs. Reel. Comparable to PN# 1062-20-0122
REQUEST A QUOTE
AT62-20-0122-LP Size 20 Stamped & Formed Socket Contact, Nickel Plating, 7.5A, Wire Range 16-22AWG, Loose Pieces, Bag of 50. Comparable to PN# 1062-20-0122 (Loose Piece)
REQUEST A QUOTE
AT62-20-0144 Size 20 Stamped & Formed Socket Contact, Gold Plating, 7.5A, Wire Range 16-22AWG. 4000 pcs. Reel. Comparable to PN# 1062-20-0144
REQUEST A QUOTE
AT62-20-0144-LP Size 20 Stamped & Formed Socket Contact, Gold Plating, 7.5A, Wire Range 16-22AWG, Loose Pieces, Bag of 50. Comparable to PN# 1062-20-0144 (Loose Piece)
REQUEST A QUOTE
AT62-20-0222 Size 20 Stamped & Formed Socket Contact, Nickel Plating, 7.5A, Wire Range 16-22AWG. Comparable to PN# 1062-20-0222
REQUEST A QUOTE
AT62-20-0244 Size 20 Stamped & Formed Socket Contact, Gold Plating, 7.5A, Wire Range 16-22AWG. Comparable to PN# 1062-20-0244
REQUEST A QUOTE
AT62-20-0277 Size 20 Stamped & Formed Socket Contact, Tin Plating, 7.5A, Wire Range 16-22AWG. Comparable to PN# 1062-20-0277
REQUEST A QUOTE
AT62-20-0422 Size 20 Stamped & Formed Socket Contact, Tin Plating, 7.5A, Wire Range 20-22AWG
REQUEST A QUOTE
AT62-20-0444 Gold plated, Machined Female Contact, Size 20, Wire Range 0.35 - 0.5MM²
REQUEST A QUOTE
AT62-201-20141 Size 20 Solid Machined Socket Contact, Nickel Plating, 7.5A, Wire Range 20-22AWG. Comparable to PN# 0462-201-20141
REQUEST A QUOTE
AT62-201-2031 Size 20 Solid Machined Socket Contact, Gold Plating, 7.5A, Wire Range 20-22AWG. Comparable to PN# 0462-201-2031
REQUEST A QUOTE
AT62-201-20NKIT Size 20 Machined Contact Kit AT62-201-20141. Socket Contacts Nickel Plating, (10 pieces)
REQUEST A QUOTE
ATM13-217-2005 Blank Locking Sealing Plug, Grey, Replaces Size 20 Contacts
REQUEST A QUOTE
ATT-20-00 - Contact Crimp Tool, S&F, Size 20, 16AWG/18AWG/20AWG (Includes 1-Tool Frame, 1-Die Set and 1-Locator for Male/Female Contacts)
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-20 Size 20 Contact Adjustable Crimping Tool
REQUEST A QUOTE
CA-5D12 - Universal Hand Crimp Tool, Size 12/16/20 Solid Contacts Only
REQUEST A QUOTE
CA-5E12 - Pneumatic Crimp Tool, Size 12/16/20 Solid Contacts Only
REQUEST A QUOTE
ISRT20 - Contact Insertion Tool, Size 20 Contact, 24-28AWG
REQUEST A QUOTE
WA23 Heavy Duty Pneumatic crimp tool. Uses universal positioner part no. WA23-101DA and crimp locators MFX-3961
REQUEST A QUOTE
