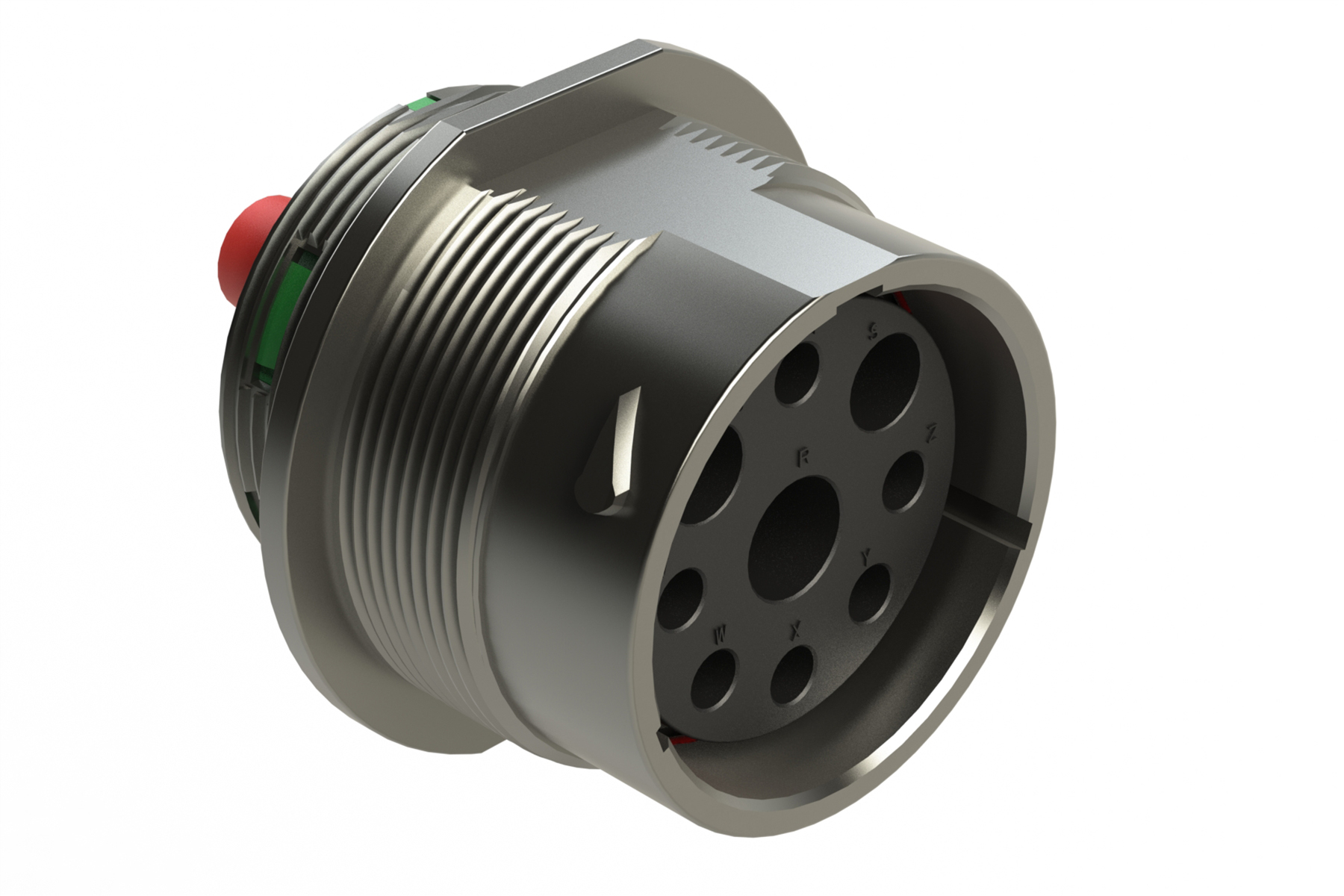

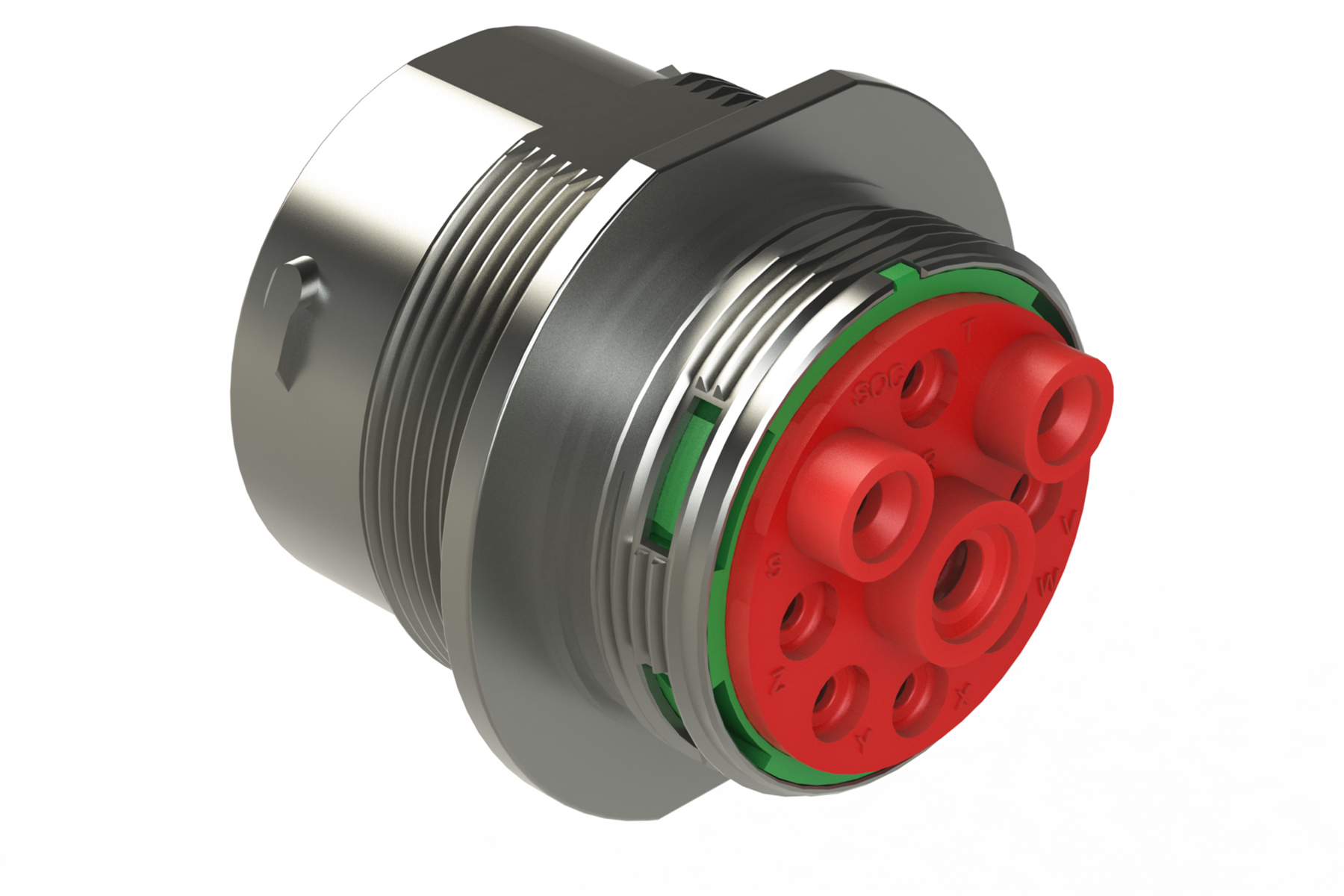

  7. AHDM04-24-09SN 9 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Wide Thread. Comparable to PN#HD34-24-9SN
AHDM04-24-09SN 9 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Wide Thread. Comparable to PN#HD34-24-9SN
AHDM04-24-09SN 9 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Wide Thread. Comparable to PN#HD34-24-9SN

AHDM04-24-09SN 9 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Wide Thread. Comparable to PN#HD34-24-9SN

$0.00
Receptacle
PART NUMBER: AHDM04-24-09SN
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Positions: 9
  • Contact Size: 4,8,12
  • Contact Type (Pin/Socket): Socket
  • Gender: Female
  • Contacts Included: No
  • Shell Size: 24
  • Wire Range: 6 AWG (16.0-13.0mm²), 8-10 AWG (8.0-5.0mm²), 10-14 AWG (6.0-2.0mm²)
  • Amperage: 100,60,25
  • Housing Material: Zinc Alloy, Nickel Plated
  • Voltage: 250 V
  • Operating Temperature: -55°C to +125°C
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
  • Color: Black
  • Shape: Circular
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @1500 volts AC
  • Insulation Resistance: 1000 Megaohm min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 6.63 mm (.261") - 7.42 mm (.292"), 4.83 mm (.190") - 6.10 mm (.240"), 3.43 mm (.135") - 4.32 mm (.170")
  • Rear Seal Type: Normal seal diameter
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Mating Part*: AHDM06-24-09P*
9 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Wide Thread. Comparable to PN#HD34-24-9SN
