DuraMate AHDM
Duramate AHDM 24-09

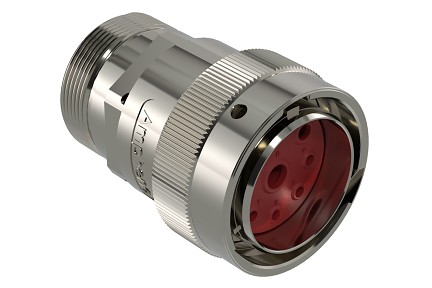

AHDM06-24-09PR-072 9 Position Plug, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-9PE-072
AHDM06-24-09PR-072 9 Position Plug, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-9PE-072
AHDM06-24-09PR-072 9 Position Plug, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-9PE-072
$0.00
Plug
PART NUMBER:
AHDM06-24-09PR-072
Datasheet
:
View / Download
9
Circular
69
100
Metal
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
9
Contact Size:
4,8,12
Contact Type (Pin/Socket):
Pin
Gender:
Male
Contacts Included:
No
Amperage:
100A, 60A, 13A
Wire Range:
6 AWG (16.0-13.0mm²), 8-10 AWG (8.0-5.0mm²), 10-14 AWG (6.0-2.0mm²)
Voltage Rating:
250V
Housing Material:
Zinc Alloy, Nickel Plated
Operating Temperature:
'-55°C TO +125°C
IP Rating:
IP67 & IP69K (in mated condition)
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Seal Diameter:
6.63mm (.261") - 7.42mm (.292"), 3.43mm (.135") - 5.59mm (.220"), 2.46mm (.097") - 4.01mm (.158")
Rear Seal Type:
Reduced Diameter Seal
Seal Color Coded Adaptor:
Blue
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mounting Style:
Free Hanging
Mating Part*:
AHDM04-24-09S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
9 Position Plug, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-9PE-072
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Plugs|Connectors~Pin (Male)
Related Items
A112263-90 Nut, AHDM Series, SIZE 24. Comparable to PN# 112263-90
REQUEST A QUOTE
A112264 Lockwasher, AHDM Series, SIZE 24. Comparable to PNs# 112264, 112264-ZZ
REQUEST A QUOTE
AHDC36-24 Protective cap for RECEPTACLE, AHDM Series, SIZE 24. Comparable to PN# HDC36-24
REQUEST A QUOTE
AHDM04-24-09SN 9 Position Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Wide Thread. Comparable to PN#HD34-24-9SN
REQUEST A QUOTE
AHDM06-24-09PN 9 Position Plug, Pin, Shell Size 24, Normal Diameter Seal (Green Adapter), Wide Thread. Comparable to PN#HD36-24-9PN
REQUEST A QUOTE
AHDM06-24-09PN-059 9 Position Plug Kit, Shell Size 24, Pin, Normal Diameter Seal (Green Adapter), Wide Thread, Cable Clamp Backshell. Comparable to PN#HD36-24-9PN-059
REQUEST A QUOTE
AHDM06-24-09PN-072 9 Position Plug, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-9PN-072
REQUEST A QUOTE
AHDM06-24-09PN-L005 9 Position Plug, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-9PN-L005
REQUEST A QUOTE
AHDM06-24-09PR Plug, Size 24, 9 positions, Pin, reduced diameter seal, wide thread. Comparable to PN# HD36-24-9PN-L006
REQUEST A QUOTE
AHDM06-24-09PR-059 Plug Kit, shell size 24, 9 positions, pin, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-09PE-059
REQUEST A QUOTE
AHDM06-24-09PR-L005 9 Position Plug, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-9PE-L005
REQUEST A QUOTE
AHDMBS-24-001 Size 24 Straight Backshell, Tie Wrap End Bell
REQUEST A QUOTE
AHDMBS-24-002 Backshell, Size 24, AHDM Series, 2 pc
REQUEST A QUOTE
AHDMBS-24-059 Backshell with cable clamp, size 24
REQUEST A QUOTE
AHDM-BS-24NUT Adapter for tube Backshell, AHDM, SIZE 24,
REQUEST A QUOTE
AHDMBS-24-SM01 Size 24 Backshell, Metal
REQUEST A QUOTE
AHDP-16-04477 Rubber Flange Seal, shell size 24. Comparable to PN# 16-04477
REQUEST A QUOTE
AHDPM24-BT Size 24 Rubber Boot for DuraMate AHDP (SRA only) & AHDM, PVC, Grey. Comparable to PN# HD30-24BT
REQUEST A QUOTE
AHDPM24-BT-BK Size 24 Rubber Boot for DuraMate AHDP (SRA only) & AHDM, PVC, Black. Comparable to PN# HD30-24BT-BK
REQUEST A QUOTE
AT11-001-3.6M Contact Removal Tool, Plastic, Size 8 (3.6 mm). Comparable to PN# 0411-337-1205
REQUEST A QUOTE
AT11-027-0405 Contact removal tool, Size 4, 4 AWG. Comparable to PN# 0411-027-0405
REQUEST A QUOTE
AT11-337-1205 Contact Removal Tool, plastic Size 12
REQUEST A QUOTE
AT114008 Contact removal tool, Size 8, 8-10 AWG. Comparable to PN# 114008
REQUEST A QUOTE
AT114009 Contact removal tool, Size 4, 6 AWG. Comparable to PN# 114009
REQUEST A QUOTE
AT60-12-0144 Size 12 Stamped & Formed Pin Contact, Gold Plating, 25A, Wire Range 12-14AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-0144
REQUEST A QUOTE
AT60-12-0166 Size 12 Stamped & Formed Pin Contact, Nickel Plating, 25A, Wire Range 12-14AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-0166
REQUEST A QUOTE
AT60-12-0166-LP Size 12 Stamped & Formed Contact, Nickel Plating, Male, 25A, Wire Range 12-14AWG, Loose Pieces, Bag of 50. Comparable to PN# 1060-12-0166
REQUEST A QUOTE
AT60-12-0222 Size 12 Stamped & Formed Pin Contact, Nickel Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-0222
REQUEST A QUOTE
AT60-12-0222-LP Size 12 Stamped & Formed Contact, Nickel Plating, Male, 25A, 10-Wire Range 12AWG, Loose Pieces, Bag of 50. Comparable to PN# 1060-12-0222
REQUEST A QUOTE
AT60-12-0244 Size 12 Stamped & Formed Pin Contact, Gold Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-1044
REQUEST A QUOTE
AT60-203-04141-4 Size 4 Machined Pin Contact, Nickel Plating, 100A, Wire Range4AWG. Comparable to PN# 5960-203-04141
REQUEST A QUOTE
AT60-203-0431-4 Size 4 Machined Pin Contact, Gold Plating, 100A, Wire Range 4AWG
REQUEST A QUOTE
AT60-204-0490 Size 4 Machined Pin Contact, Nickel Plating, 100A, Wire Range 6AWG. Comparable to PN# 0460-204-0490
REQUEST A QUOTE
AT60-204-08141 Size 8 Machined Pin Contact, Nickel Plating, 60A, Wire Range 8-10AWG. Comparable to PN# 0460-204-08141
REQUEST A QUOTE
AT60-204-08141-16 Size 8 Machined Pin Contact, Nickel Plating, 60A, Wire Range 6AWG
REQUEST A QUOTE
AT60-204-12141 Size 12 Machined Pin Contact, Nickel Plating, Wire Range 12-14AWG. Comparable to PN# 0460-204-12141
REQUEST A QUOTE
AT60-204-12NKIT Size 12 Machined Contact Kit AT60-204-12141. Pin Contacts, Nickel Plating, 25A, Wire Range 12-14 AWG, (10 pieces)
REQUEST A QUOTE
AT60-220-1231 Size 12 Machined Pin Contact, Gold Plating, 25A , Wire Range 12-14AWG. Comparable to PN# 0460-220-1231
REQUEST A QUOTE
ATT-12-00 - Contact Crimp Tool, S&F, Size 12, 12-14AWG (Includes 1-Tool Frame, 1-Die Set and 1-Locator for Male/Female Contacts)
REQUEST A QUOTE
ATT-1612-03 - Contact Crimp Tool, S&F, Size 12/16, 14AWG/20AWG/22AWG (Includes 1-Tool Frame, 1-Die Set and 1-Locator for Male/Female Contacts)
REQUEST A QUOTE
AUTK-12 Size 12 Contact Adjustable Crimping Tool
REQUEST A QUOTE
MFX-3973 - Size 12 Crimp Die for Stamped and Formed Contacts
REQUEST A QUOTE
SC000345 3.6mm Machined Radsok Pin Contact, Silver Plating, 80A, Wire Range 7-10 AWG
REQUEST A QUOTE
SC000345-141 3.6 mm Solid Machined Pin Contact, Nickel Plating, 60A, Wire Range 8-10 AWG
REQUEST A QUOTE
WA23-10 Contact Locater, Size 8
REQUEST A QUOTE
WA23-11 Contact Locater, Size 4
REQUEST A QUOTE
WA23-138DA Die Assembly for Heavy Duty Pneumatic Crimp Tool, Size 4
REQUEST A QUOTE
WA23-2 Die Assembly for CA-5E12 Heavy Duty Pneumatic Crimp Tool, Size 8
