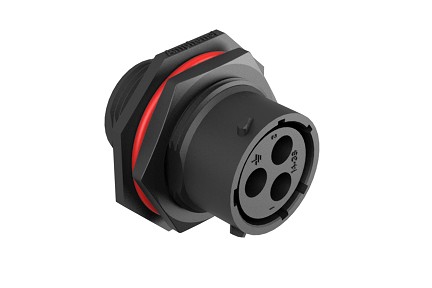

RTS714N3S03 Receptacle, jam nut, 3 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS7142G1S
RTS714N3S03 Receptacle, jam nut, 3 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS7142G1S
RTS714N3S03 Receptacle, jam nut, 3 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS7142G1S
$0.00
Receptacle, jam nut, 3 positions, size 14, socket contact, silicone rubber seal
PART NUMBER:
RTS714N3S03
Datasheet
:
View / Download
3D Model
:
View/Download
3
Circular
69
45
Plastic
SPECIFICATIONS:
No. of Contacts:
3
Shell Size:
14
Amperage:
45A
Contact Size:
8
AWG:
12-10
Volt:
600
Contact Pin or Socket:
Socket
IP Rating:
IP67 / IP69k (in mated condition)
Housing Material:
Thermoplastic UL94 V-0
Temperature Range:
-40° C to +125°C
Rohs Compliant:
TRUE
Salt Spray:
>500h
Male or Female:
Female
Mating Parts:
RTS014N3P03, RTS1BS14N3P03, RTS1BS14N3PHEC03, RTS6BS14N3P03,RTS6BS14N3PHEC03,, RTS714N3P03,
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 3 Position, Female, Shell Size 14, with Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
600
Connectors~Receptacles~Jam Nut|Connectors~Socket (Female)
