  7. RTS6BS14N3PHEC03 Plug, 3 positions, size 14, pin contact, silicone rubber seal, endcap. Comparable to PN #UTS6GN142G1P

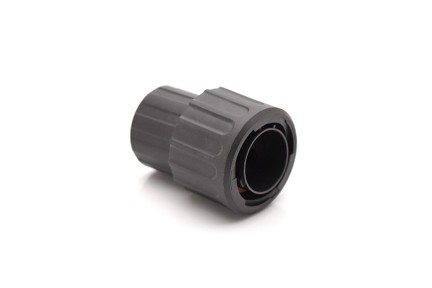

RTS6BS14N3PHEC03 Plug, 3 positions, size 14, pin contact, silicone rubber seal, endcap. Comparable to PN #UTS6GN142G1P
RTS6BS14N3PHEC03 Plug, 3 positions, size 14, pin contact, silicone rubber seal, endcap. Comparable to PN #UTS6GN142G1P

RTS6BS14N3PHEC03 Plug, 3 positions, size 14, pin contact, silicone rubber seal, endcap. Comparable to PN #UTS6GN142G1P

$0.00
PART NUMBER: RTS6BS14N3PHEC03
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 14
  • No. of Contacts: 3
  • Contact Size: #8 (3.6mm)
  • Amperage: 45A
  • AWG: 12-10
  • Voltage: 600
  • Contact Pin or Socket: Pin
  • IP Rating: IP67 / IP69k (in mated condition)
  • Housing Material: Thermoplastic UL94 V-0
  • Temperature Range: -40°C to +125°C
  • Salt Spray: >500h
  • Male or Female: Male
  • Mating Parts: RTS014N3S03,RTS014N3SHEC03,RTS1BS14N3SHEC03,RTS714N3S03
Plug, 3 Position, Male, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing

Related Items

CA-4012-59 Sealing Plug, White, Size 12 (2.5mm), Size 8 (3.6mm)
CA-4012-59 Sealing Plug, White, Size 12 (2.5mm), Size 8 (3.6mm)
REQUEST A QUOTE
MP10A23FL 3.6mm Pin Contact, Gold Flash, Machined, 45A, Wire Range 10-12AWG
MP10A23FL 3.6mm Pin Contact, Gold Flash, Machined, 45A, Wire Range 10-12AWG
REQUEST A QUOTE
MP10A23SL Pin Contact, Machined, Silver Plated, 3.6mm (10mm²), Wire Range 4-6mm² 10-12AWG. Only used in male connectors with endcap
MP10A23SL Pin Contact, Machined, Silver Plated, 3.6mm (10mm²), Wire Range 4-6mm² 10-12AWG. Only used in male connectors with endcap
REQUEST A QUOTE
RTS014N3S03 Receptacle, square flange, 3 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS0142G1S
RTS014N3S03 Receptacle, square flange, 3 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS0142G1S
REQUEST A QUOTE
RTS014N3SHEC03 Receptacle, square flange, 3 positions, size 14, socket contact, silicone rubber seal,with endcap. Comparable to PN #UTS0GN14GS1S
RTS014N3SHEC03 Receptacle, square flange, 3 positions, size 14, socket contact, silicone rubber seal,with endcap. Comparable to PN #UTS0GN14GS1S
REQUEST A QUOTE
RTS14CCRG Coding color ring, Green, size 14. Compatible to part # UTS614CCRG
RTS14CCRG Coding color ring, Green, size 14. Compatible to part # UTS614CCRG
REQUEST A QUOTE
RTS14CCRR Coding color ring, Red, size 14. Compatible to part # UTS614CCRR
RTS14CCRR Coding color ring, Red, size 14. Compatible to part # UTS614CCRR
REQUEST A QUOTE
RTS14CCRY Coding color ring, Yellow, size 14. Compatible to part # UTS614CCRY
RTS14CCRY Coding color ring, Yellow, size 14. Compatible to part # UTS614CCRY
REQUEST A QUOTE
RTS1BS14N3SHEC03 Receptacle, Inline, 3 positions, size 14, socket contact, endcap, silicone rubber seal. Comparable to PN #UTS6GN142G1S
RTS1BS14N3SHEC03 Receptacle, Inline, 3 positions, size 14, socket contact, endcap, silicone rubber seal. Comparable to PN #UTS6GN142G1S
REQUEST A QUOTE
RTS614NDCG Dust cap for Plug, Size 14. Compatible to part # UTS614DCG
RTS614NDCG Dust cap for Plug, Size 14. Compatible to part # UTS614DCG
REQUEST A QUOTE
RTS6BS14N3P03 Plug, 3 positions, size 14, pin contact, silicone rubber seal. Comparable to PN #UTS6JC142G1P
RTS6BS14N3P03 Plug, 3 positions, size 14, pin contact, silicone rubber seal. Comparable to PN #UTS6JC142G1P
REQUEST A QUOTE
RTS714N3S03 Receptacle, jam nut, 3 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS7142G1S
RTS714N3S03 Receptacle, jam nut, 3 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS7142G1S
REQUEST A QUOTE
