Our Product Lines
ecomate Connectors
ecomate Aquarius
14-3 Position
SQUARE FLANGE RECEPTACLES

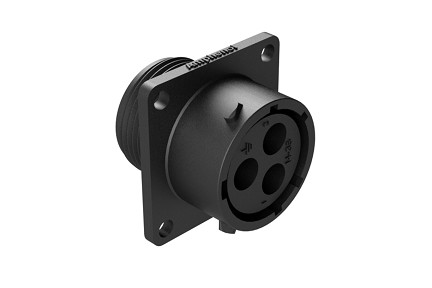

RTS014N3S03 Receptacle, square flange, 3 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS0142G1S
RTS014N3S03 Receptacle, square flange, 3 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS0142G1S
RTS014N3S03 Receptacle, square flange, 3 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS0142G1S
$0.00
Receptacle, square flange, 3 positions, size 14, socket contact, silicone rubber seal
PART NUMBER:
RTS014N3S03
Datasheet
:
View / Download
3D Model
:
View/Download
3
Circular
69
45
Plastic
SPECIFICATIONS:
No. of Contacts:
3
Shell Size:
14
Amperage:
45A
Contact size:
8
AWG:
12-10
Volt:
600
Contact Pin or Socket:
Socket
IP Rating:
IP67 / IP69k (in mated condition)
Housing Material:
Thermoplastic UL94 V-0
Temperature Range:
-40° C to +125°C
Rohs Compliant:
TRUE
Salt Spray:
>500h
Male or Female:
Female
Mating Parts:
RTS6BS14N3P03, RTS6BS14N3PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 3 Position, Female, Shell Size 14, with Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
600
Connectors~Receptacles|Connectors~Socket (Female)
Related Items
CA-4012-59 Sealing Plug, White, Size 12 (2.5mm), Size 8 (3.6mm)
REQUEST A QUOTE
MP10A23F-10 3.6mm (10mm²) Pin Contact, Gold Flash, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MP10A23G10-10 3.6mm (10mm²) Pin Contact, 10?"Gold Plating, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MP10A23G15-10 3.6mm (10mm²) Pin Contact, 15?"Gold Plating, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MP10A23G30-10 3.6mm (10mm²) Pin Contact, 30 (mu) Gold Plating, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MP10A23G5-10 3.6mm (10mm²) Pin Contact, 5?"Gold Plating, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MP10A23S-10 Pin Contact, Machined, Silver Plated, 3.6mm (10mm²), Wire Range 10-16mm² 8AWG
REQUEST A QUOTE
MP10A23T-10 3.6mm (10mm²) Pin Contact, Tin Plating, Machined, 45A, Wire Range 8AWG
REQUEST A QUOTE
MS10A23F-25 3.6mm Socket Contact, Gold Plated, Machined. 45A, Wire Range 1.5-2.5mm²
REQUEST A QUOTE
MS10A23F-63 3.6mm Socket Contact, Gold Plated, Machined. 45A, Wire Range 4-6mm²
REQUEST A QUOTE
RTFD14B Shell Size 14 Square Flange Receptacle Gaskets, Thickness 0.8mm (±0.2). Compatible to part # UTFD14B
REQUEST A QUOTE
RTS014DCG Dust cap for Receptacle, size 14. Compatible to part # UTS14DCG
REQUEST A QUOTE
RTS014N3SHEC03 Receptacle, square flange, 3 positions, size 14, socket contact, silicone rubber seal,with endcap. Comparable to PN #UTS0GN14GS1S
REQUEST A QUOTE
RTS0L-14CG Back Shell size 14, cable range 6.0mm-14.0mm
REQUEST A QUOTE
RTS14CCRG Coding color ring, Green, size 14. Compatible to part # UTS614CCRG
REQUEST A QUOTE
RTS14CCRR Coding color ring, Red, size 14. Compatible to part # UTS614CCRR
REQUEST A QUOTE
RTS14CCRY Coding color ring, Yellow, size 14. Compatible to part # UTS614CCRY
REQUEST A QUOTE
RTS6BS14N3P03 Plug, 3 positions, size 14, pin contact, silicone rubber seal. Comparable to PN #UTS6JC142G1P
REQUEST A QUOTE
RTS6BS14N3PHEC03 Plug, 3 positions, size 14, pin contact, silicone rubber seal, endcap. Comparable to PN #UTS6GN142G1P
REQUEST A QUOTE
RTS714N3S03 Receptacle, jam nut, 3 positions, size 14, socket contact, silicone rubber seal. Comparable to PN #UTS7142G1S
REQUEST A QUOTE
