ecomate Connectors
ecomate Aquarius
14-12 Position
PLUGS

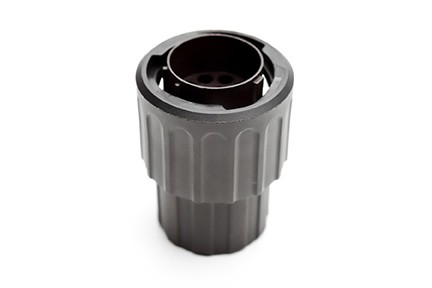

RTS6BS14N12PHEC03 Plug, 12 Position, Male, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing. Compatible to part # UTS6JC1412P
RTS6BS14N12PHEC03 Plug, 12 Position, Male, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing. Compatible to part # UTS6JC1412P
RTS6BS14N12PHEC03 Plug, 12 Position, Male, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing. Compatible to part # UTS6JC1412P
$0.00
Plug
PART NUMBER:
RTS6BS14N12PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
12
Circular
69
13
Plastic
SPECIFICATIONS:
Amperage:
13A
Contact Size:
16
IP Rating:
IP67 / IP69k (in mated condition)
No. of Contacts:
12
Pin or Socket:
Pin
Rohs Compliant?:
Yes
Shell Size:
14
Volts:
500
Mating Parts:
RTS714N12S03, RTS014N12S03, RTS014N12SHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug, 12 Position, Male, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing. Compatible to part # UTS6JC1412P
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Plugs|Connectors~Pin (Male)
