Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
14-12 Position
INLINE RECEPTACLES

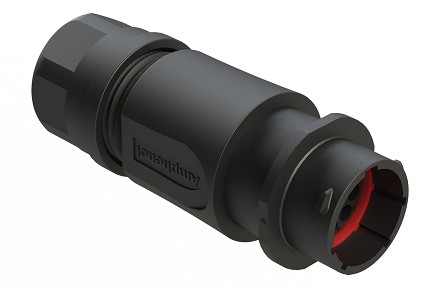

RTS1BS14N12S03 Receptacle, Inline, 12 positions, size 14, socket contacts, silicone rubber seal. Comparable to PN #UTS1JC1412S
RTS1BS14N12S03 Receptacle, Inline, 12 positions, size 14, socket contacts, silicone rubber seal. Comparable to PN #UTS1JC1412S
RTS1BS14N12S03 Receptacle, Inline, 12 positions, size 14, socket contacts, silicone rubber seal. Comparable to PN #UTS1JC1412S
$0.00
Receptacle, Inline, 12 positions, size 14, pin contact, silicone rubber seal
PART NUMBER:
RTS1BS14N12S03
Datasheet
:
View / Download
3D Model
:
View/Download
12
Circular
69
13
Plastic
SPECIFICATIONS:
No. of Contacts:
12
Shell Size:
14
Amperage:
13A
Contact size:
16
AWG:
14-26
Volt:
500
Contact Pin or Socket:
Socket
IP Rating:
IP67 / IP69k (in mated condition)
Housing Material:
Thermoplastic UL94 V-0
Temperature Range:
-40° C to +125°C
Rohs Compliant:
TRUE
Salt Spray:
>500h
Male or Female:
Female
Mating Parts:
RTS6BS14N12P03, RTS6BS14N12PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 12 Position, Female, Shell Size 14, with Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Inline|Connectors~Socket (Female)
