ecomate Connectors
ecomate Aquarius
14-12 Position
INLINE RECEPTACLES

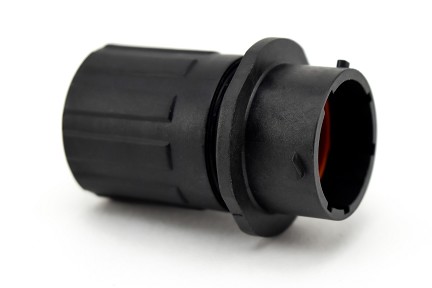

RTS1BS14N12SHEC03 Receptacle, Inline, 12 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing. Comparable to PN #UTS1GN1412S
RTS1BS14N12SHEC03 Receptacle, Inline, 12 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing. Comparable to PN #UTS1GN1412S
RTS1BS14N12SHEC03 Receptacle, Inline, 12 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing. Comparable to PN #UTS1GN1412S
$0.00
Inline Receptacle w Endcap
PART NUMBER:
RTS1BS14N12SHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
12
Circular
69
13
Metal
SPECIFICATIONS:
Shell Size:
14
No. of Contacts:
12
Contact Size:
16
Amperage:
13A
Wire Range:
14-24
Voltage:
500
Contact Pin or Socket:
Socket
Housing Material:
Thermoplastic UL94 V-0
IP Rating:
IP67 and IP69K (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Gender:
Female
Mating Part(s):
RTS6BS14N12P03, RTS6BS14N12PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Inline, 12 Position, Female, Shell Size 14, Silicone Seal, and End Cap with Individual Wire Sealing. Comparable to PN #UTS1GN1412S
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Inline|Connectors~Socket (Female)
