Home
Our Product Lines
ecomate Connectors
ecomate Aquarius
14-12 Position
JAM NUT RECEPTACLES

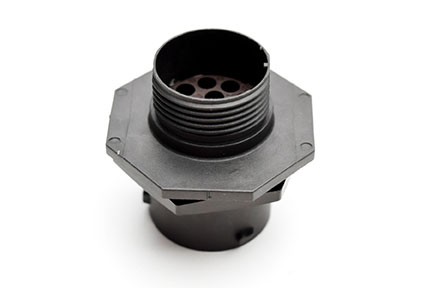

RTS714N12S03 Receptacle, jam nut, 12 positions, size 14, socket contact, silicone rubber seal. Intermateable with part # UTS71412S. Comparable to PN #UTS71412S
RTS714N12S03 Receptacle, jam nut, 12 positions, size 14, socket contact, silicone rubber seal. Intermateable with part # UTS71412S. Comparable to PN #UTS71412S
RTS714N12S03 Receptacle, jam nut, 12 positions, size 14, socket contact, silicone rubber seal. Intermateable with part # UTS71412S. Comparable to PN #UTS71412S
$0.00
Jam Nut Receptacle
PART NUMBER:
RTS714N12S03
Datasheet
:
View / Download
3D Model
:
View/Download
12
Circular
69
13
Plastic
SPECIFICATIONS:
Amperage:
13A
Contact Size:
16
IP Rating:
IP67 / IP69k (in mated condition)
No. of Contacts:
12
Pin or Socket:
Socket
Rohs Compliant?:
Yes
Shell Size:
14
Volts:
500
Mating Parts:
RTS6BS14N12P03, RTS6BS14N12PHEC03
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Jam Nut, 12 Position, Female, Shell Size 14, with Silicone Seal
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Aquarius
500
Connectors~Receptacles~Jam Nut|Connectors~Receptacles|Connectors~Socket (Female)
