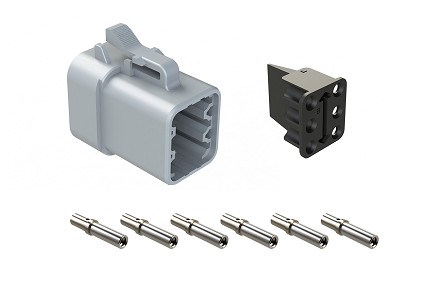

ATP06-6SB-KIT01 6 Position Plug Kit, Keyed B, Socket Contacts and Wedgelock Included
ATP06-6SB-KIT01 6 Position Plug Kit, Keyed B, Socket Contacts and Wedgelock Included
ATP06-6SB-KIT01 6 Position Plug Kit, Keyed B, Socket Contacts and Wedgelock Included
$0.00
Plug Kit
PART NUMBER:
ATP06-6SB-KIT01
Datasheet
:
View / Download
6
Rectangular / Other
67
Plastic
SPECIFICATIONS:
No. of Positions:
6
Contact Size:
12
Amperage:
25A
Contacts Included:
Yes
Contact Type (Pin/Socket):
Socket
Gender:
Female
Wire Range:
12-14 AWG (4.0-2.0mm²)
Housing Material:
Thermoplastic
Voltage Rating:
250V
Shape:
Rectangular
Color:
Grey/Black
IP Rating:
IP67 (in mated condition)
Operating Temperature:
-55°C to +125°C
Seal Material:
Silicone Rubber
Seal Diameter:
3.40mm (.134") - 4.95mm (.195")
Plating:
Nickel
Contact Material:
Copper Alloy
Dielectric Value:
Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms at 25°C
Mating Cycle Durability:
>100
RoHS Compliant:
YES
Wedge Part#:
AWP-6SB included
Mating Part(s)*:
ATP04-6P* Receptacle
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
6 Position Plug Kit, Keyed B, Socket Contacts and Wedgelock Included
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water resistance,Harsh Environments
A Series~ARC
Connectors~Connector Kits|Connectors~Plugs|Connectors~Socket (Female)
