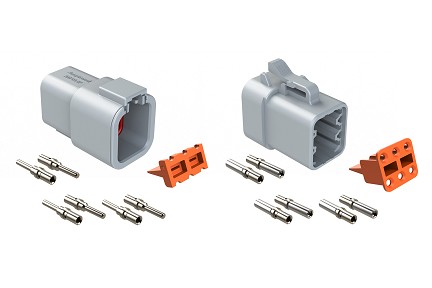

ATP6PS-CKIT 6 Position Receptacle Kit, Pin Contacts and Wed

ATP6PS-CKIT 6 Position Receptacle Kit, Pin Contacts and Wedgelock Included

$0.00

Receptacle Connector Kit

PART NUMBER: ATP6PS-CKIT

Datasheet:

View / Download 3D Model:

View/Download

No. of Positions: 6
Contact Size: 12
Amperage: 25A
Contacts Included: Yes
Contact Type (Pin/Socket): Pin
Gender: Male & Female
Wire Range: 12-14 AWG (4.0-2.0mm²)
Housing Material: Thermoplastic
Voltage Rating: 250V
Shape: Rectangular
Color: Grey
IP Rating: IP67 (in mated condition)
Operating Temperature: -55°C to +125°C
Seal Material: Silicone Rubber
Seal Diameter: 3.40mm (.134") - 4.95mm (.195")
Plating: Nickel
Contact Material: Copper Alloy
Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
Insulation Resistance: 1000 megohms at 25°C
Mating Cycle Durability: >100
RoHS Compliant: YES
Wedge Part#: AWP-6S,AWP-6P
Mating Part(s)*: Complete Kit

QUANTITY

6 Position Receptacle Kit, Pin Contacts and Wedgelock Included
