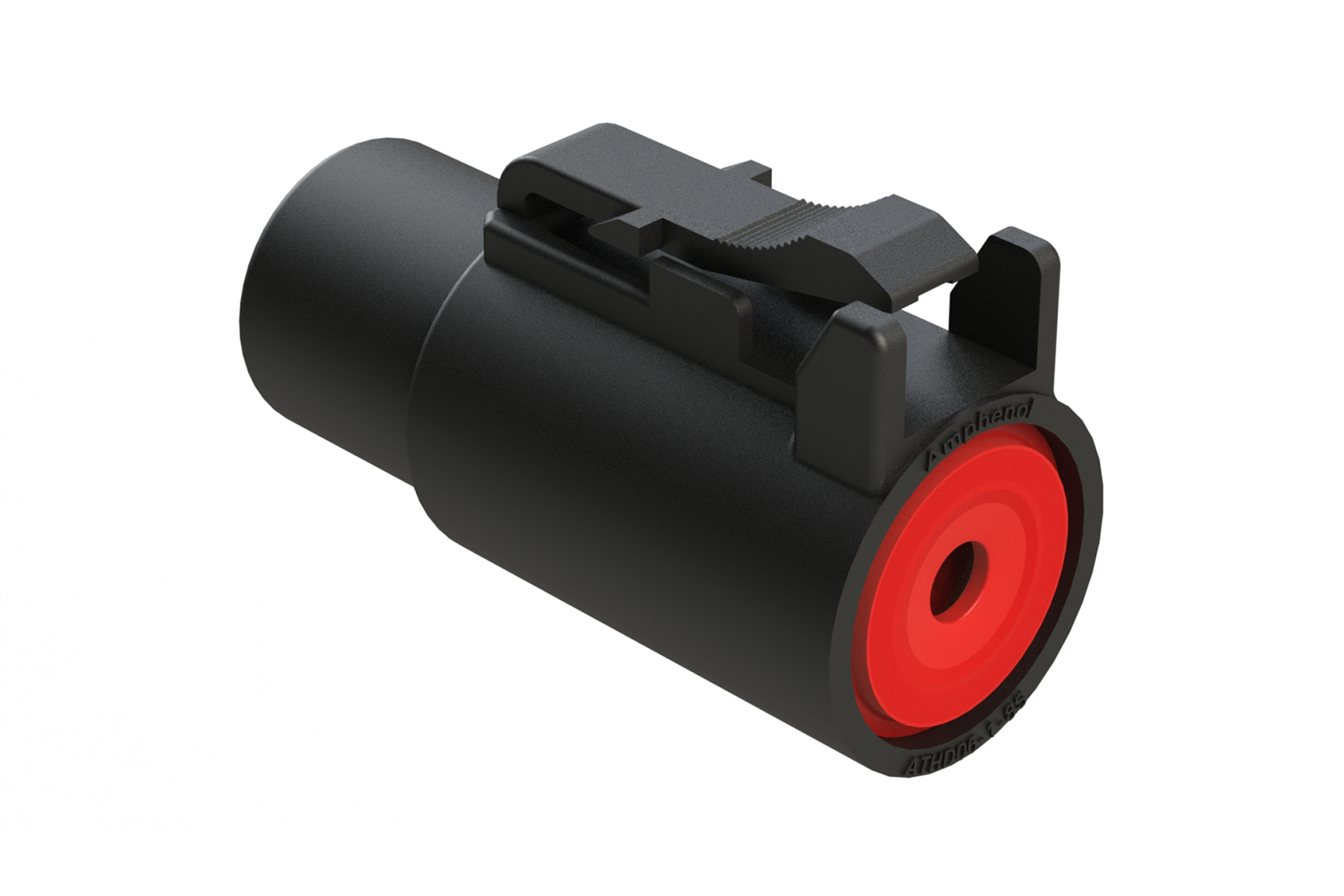

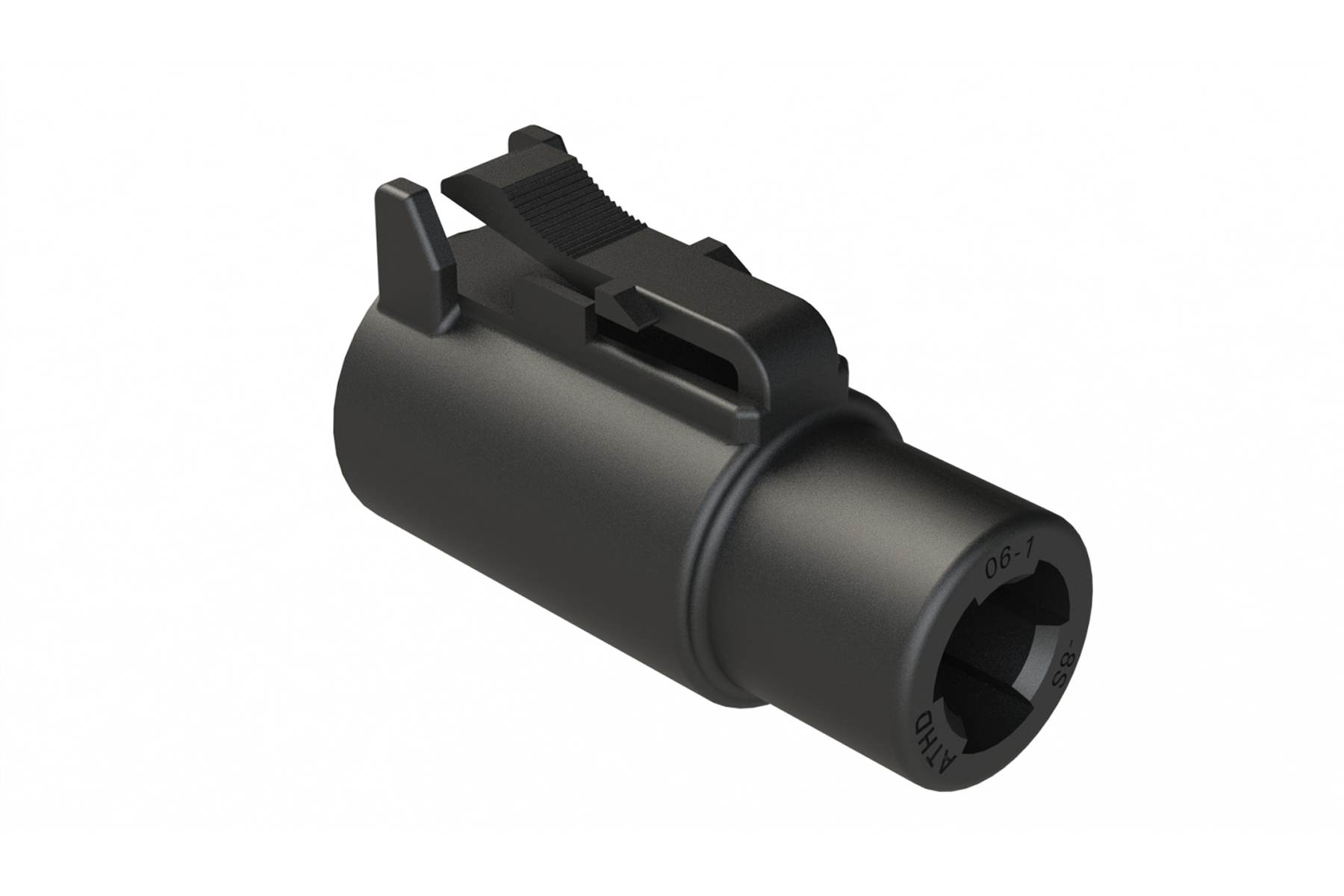

ATHD06-1-8S 1 Position Plug, Socket, Contact Size 8. Comparable to PN# DTHD06-1-8S
ATHD06-1-8S 1 Position Plug, Socket, Contact Size 8. Comparable to PN# DTHD06-1-8S

ATHD06-1-8S 1 Position Plug, Socket, Contact Size 8. Comparable to PN# DTHD06-1-8S

$0.00
Plug
PART NUMBER: ATHD06-1-8S
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • No. of Positions: 1
  • Contact Size: 8
  • Amperage: 60A
  • Contacts Included: No
  • Contact Type (Pin/Socket): Socket
  • Gender: Female
  • Wire Range: 8-10 AWG (8.0-5.0mm²)
  • Housing Material: Thermoplastic
  • Voltage Rating: 500V
  • Shape: Circular
  • Color: Black
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 4.83mm (.190") - 6.09mm (.240")
  • Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Mating Cycle Durability: >100
  • RoHS Compliant: YES
  • Mating Part(s)*: ATHD04-1-8P* Receptacle
1 Position Plug, Socket, Contact Size 8. Comparable to PN# DTHD06-1-8S
