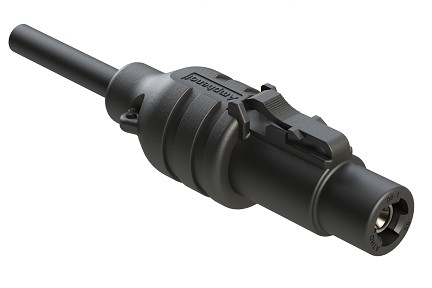

ATHD06-1-8S-8G-M5 1 Position Single-ended Overmolded Cable Assembly, Plug, Socket Contact Size 8, 8AWG, 5 Meter Length
ATHD06-1-8S-8G-M5 1 Position Single-ended Overmolded Cable Assembly, Plug, Socket Contact Size 8, 8AWG, 5 Meter Length

ATHD06-1-8S-8G-M5 1 Position Single-ended Overmolded Cable Assembly, Plug, Socket Contact Size 8, 8AWG, 5 Meter Length

$0.00
Plug Cable Assembly
PART NUMBER: ATHD06-1-8S-8G-M5
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Positions: 1
  • Contact Size: 8
  • Contact Type (Pin/Socket): Socket
  • Gender: Female
  • Wire Range: 8AWG
  • Amperage: 75A
  • Housing Material: PA66
  • Voltage: 600V
  • Operating Temperature: -40°C+100°C
  • Color: Black
  • IP Rating: IP68 (1M of water for a period of 24 hours, mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megaohms min. @ 25°C
  • Seal Material: Silicone Rubber
  • RoHS Compliant: TRUE
  • Mating Cycle Durability: >100
  • Mating Part*: ATHD04-1-8P RECEPTACLE, ATHD04-1-8P-8G-M* Cable Assembly
1 Position Single-ended Overmolded Cable Assembly, Plug, Socket Contact Size 8, 8AWG, 5 Meter Length
