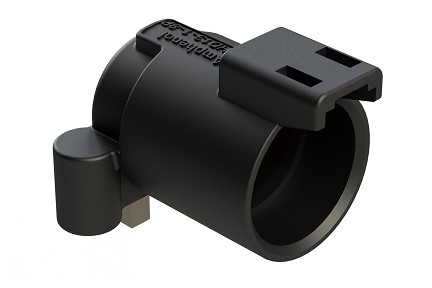

ATFHD13-1-8P-BM13 1 Position, Right Angle Board Mount Recep

ATFHD13-1-8P-BM13 1 Position, Right Angle Board Mount Receptacle, Pin, Self-Threading, Tin Plated Size 8 Contact

$0.00

Receptacle

PART NUMBER: ATFHD13-1-8P-BM13

Datasheet:

View / Download 3D Model:

View/Download

No. of Positions: 1
Contact Size: 8
Contact Type (Pin/Socket): Pin
Contacts Included?: TRUE
Gender: Male
Amperage: 60A
Housing Material: Thermoplastic
Voltage: 500
Operating Temperature: -55°C TO +125°C
Color: Black
IP Rating: IP67 (in mated condition)
Plating: Tin
Contact Material: Copper Alloy
Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance: 1000 Megaohm min @ 25°C
Seal Material: Silicone Rubber
RoHS Compliant (Yes/No)?: Yes
Mating Cycle Durability: >100
Mating Part*: ATHD06-1-8S* PLUG

QUANTITY

1 Position, Right Angle Board Mount Receptacle, Pin, Self-Threading, Tin Plated Size 8 Contact
