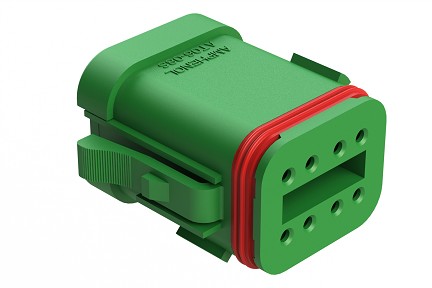

AT06-08SD-SSGRN 8-Way Plug, Female Connector with D Position Key and Solid Rear Grommet and Endcap, Wedgelock included, Green
AT06-08SD-SSGRN 8-Way Plug, Female Connector with D Position Key and Solid Rear Grommet and Endcap, Wedgelock included, Green

AT06-08SD-SSGRN 8-Way Plug, Female Connector with D Position Key and Solid Rear Grommet and Endcap, Wedgelock included, Green

$0.00
Plug, Solid Rear Seal, End Cap
PART NUMBER: AT06-08SD-SSGRN
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • No. of Positions: 8, D Key
  • Contact Size: 16
  • Amperage: 13A
  • Contacts Included: No
  • Contact Type (Pin/Socket): Socket
  • Gender: Female
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Housing Material: Thermoplastic
  • Voltage Rating: 250V
  • Shape: Rectangular
  • Color: Green
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: Blocked Grommet
  • Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Mating Cycle Durability: >100
  • RoHS Compliant: YES
  • Wedge Part#: AW8S
  • Mating Part(s)*: AT04-08PD* Receptacle
8-Way Plug, Female Connector with D Position Key and Solid Rear Grommet and Endcap, Wedgelock included, Green
