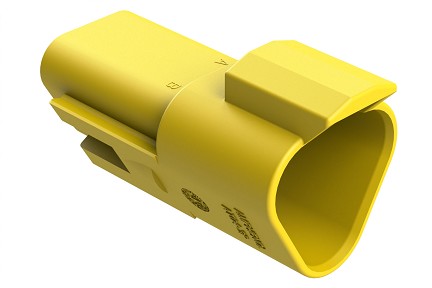

AT04-3P-RD01YEL 3-Way Receptacle, Black Male Connector with Reduced Diameter Seal (E-Seal), Yellow
AT04-3P-RD01YEL 3-Way Receptacle, Black Male Connector with Reduced Diameter Seal (E-Seal), Yellow

AT04-3P-RD01YEL 3-Way Receptacle, Black Male Connector with Reduced Diameter Seal (E-Seal), Yellow

$0.00
Receptacle, Reduced Diameter Seal
PART NUMBER: AT04-3P-RD01YEL
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • No. of Positions: 3
  • Contact Size: 16
  • Amperage: 13A
  • Contacts Included: No
  • Contact Type (Pin/Socket): Pin
  • Gender: Male
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Housing Material: Thermoplastic
  • Voltage Rating: 250V
  • Shape: Triangular
  • Color: Yellow
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Elastomer
  • Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
  • Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Mating Cycle Durability: >100
  • RoHS Compliant: YES
  • Wedge Part#: AW3P
  • Mating Part(s)*: AT06-3S* Plug
3-Way Receptacle, Black Male Connector with Reduced Diameter Seal (E-Seal), Yellow
