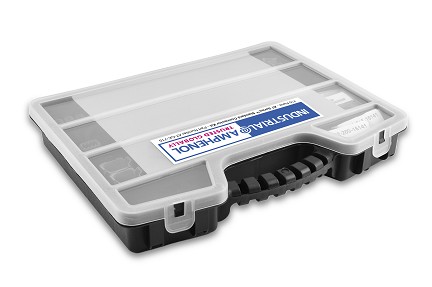

AT-CK-715 AT Series Standard Connector Kit. Includes positions 2, 3, 4, 6, 8 and 12 with wedgelocks, contacts and tool. 715 pieces in case.
AT-CK-715 AT Series Standard Connector Kit. Includes positions 2, 3, 4, 6, 8 and 12 with wedgelocks, contacts and tool. 715 pieces in case.
AT-CK-715 AT Series Standard Connector Kit. Includes positions 2, 3, 4, 6, 8 and 12 with wedgelocks, contacts and tool. 715 pieces in case.
$0.00
AT Series Standard Connector Kit (715 Piece)
PART NUMBER:
AT-CK-715
Datasheet
:
View / Download
Rectangular / Other
67
13
Plastic
SPECIFICATIONS:
No. of Positions:
2,3,4,6,8,12
Contact Size:
16
Amperage:
13A
Contacts Included:
Yes
Contact Type (Pin/Socket):
Pin & Socket
Gender:
Male & Female
Wire Range:
14-20 AWG (2.0-0.5mm²)
Housing Material:
Thermoplastic
Voltage Rating:
250V
Shape:
Rectangular
Color:
Grey
IP Rating:
IP67 (in mated condition)
Operating Temperature:
-40°C to +105°C
Seal Material:
Silicone Rubber
Plating:
Nickel
Contact Material:
Nickel
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Wedge Part#:
AW2P,AW2P-A,AW2P-B,AW2P-C,AW2P-D,AW3P,AW6P,AW8P,AW12S,AW2S,AW2S-A,AW2S-B,AW2S-C,AW2S-D,AW3S,AW4S,AW4S-A,AW4S-B,AW4S-C,AW4S-D,AW6S,AW6S2-BLU,AW8S,AW12P,AW4P,AW4P-A,AW4P-B,AW4P-C,AW4P-D
Mating Part(s)*:
All standard mating parts included. *Individual parts mate with additional parts not included in kit
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
AT Series Standard Connector Kit.
Includes positions 2, 3, 4, 6, 8 and 12 with corresponding wedgelocks, contacts and tool. 715 pieces in case.
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~AT
250
Connectors~Receptacles|Connectors~Plugs|Connectors~Pin (Male)|Connectors~Socket (Female)|Connectors~Connector Kits|Connectors~Sample Kit|Tools~Field Repair Kits
