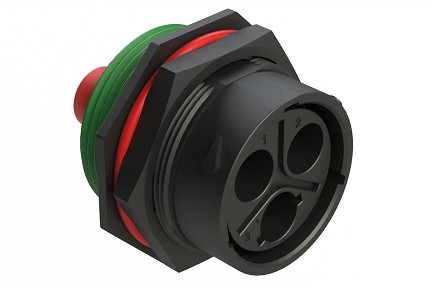

  7. AHDP07-24-03PNC-WTAC031 3 Position Receptacle, Pin, Shell Size 24, Keyed C, 100A, 1000V, Sealed Panel Mount, Normal Diameter Seal (Green Adapter), Wide Thread Adapter
AHDP07-24-03PNC-WTAC031 3 Position Receptacle, Pin, Shell Size 24, Keyed C, 100A, 1000V, Sealed Panel Mount, Normal Diameter Seal (Green Adapter), Wide Thread Adapter
AHDP07-24-03PNC-WTAC031 3 Position Receptacle, Pin, Shell Size 24, Keyed C, 100A, 1000V, Sealed Panel Mount, Normal Diameter Seal (Green Adapter), Wide Thread Adapter

AHDP07-24-03PNC-WTAC031 3 Position Receptacle, Pin, Shell Size 24, Keyed C, 100A, 1000V, Sealed Panel Mount, Normal Diameter Seal (Green Adapter), Wide Thread Adapter

$0.00
Receptacle
PART NUMBER: AHDP07-24-03PNC-WTAC031
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 3
  • Contact Size: 4
  • Contact Type (Pin/Socket): Pin
  • Gender: Male
  • Contacts Included: No
  • Amperage: 100A
  • Wire Range: 4AWG (25.0mm² - 21.0mm²)
  • Voltage Rating: 1000V
  • Housing Material: Thermoplastic
  • Operating Temperature: -55°C to +125°C
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
  • Color: Black
  • Shape: Circular
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 3000 volts AC
  • Insulation Resistance: 1000 megohms min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Color: Red
  • Seal Diameter: 7.90 mm (.0.311") - 10.67 mm (. 420")
  • Rear Seal Type: Normal Diameter Seal
  • Seal Color Coded Adaptor: Green
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Mating Part(s)*: AHDP06-24-03SNC-WTAC031 PLUG
3 Position Receptacle, Pin, Shell Size 24, Keyed C, 100A, 1000V, Sealed Panel Mount, Normal Diameter Seal (Green Adapter), Wide Thread Adapter
