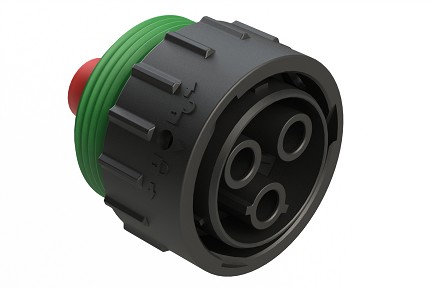

AHDP06-24-03SNC-WTAC031 3 Position Plug, Socket, Shell Size 24, Keyed C, 100A, 1000V, Normal Diameter Seal (Green Adapter), Wide Thread Adapter
AHDP06-24-03SNC-WTAC031 3 Position Plug, Socket, Shell Size 24, Keyed C, 100A, 1000V, Normal Diameter Seal (Green Adapter), Wide Thread Adapter
AHDP06-24-03SNC-WTAC031 3 Position Plug, Socket, Shell Size 24, Keyed C, 100A, 1000V, Normal Diameter Seal (Green Adapter), Wide Thread Adapter
$0.00
Plug
PART NUMBER:
AHDP06-24-03SNC-WTAC031
Datasheet
:
View / Download
Rectangular / Other
69
100
Plastic
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
3
Contact Size:
4
Contact Type (Pin/Socket):
Socket
Gender:
Female
Contacts Included:
No
Amperage:
100A
Wire Range:
4AWG (25.0mm² - 21.0mm²)
Voltage Rating:
1000V
Housing Material:
Thermoplastic
Operating Temperature:
-55°C to +125°C
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Color:
Black
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 3000 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Seal Diameter:
7.90 mm (.0.311") - 10.67 mm (. 420")
Rear Seal Type:
Normal Diameter Seal
Seal Color Coded Adaptor:
Green
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mating Part(s)*:
AHDP07-24-03PNA-WTAC031 RECEPTACLE
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
3 Position Plug, Socket, Shell Size 24, Keyed C, 100A, 1000V, Normal Diameter Seal (Green Adapter), Wide Thread Adapter
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
1000
Connectors~Plugs|Connectors~Socket (Female)|Connectors~High Voltage
