Duramate AHDP 24-21

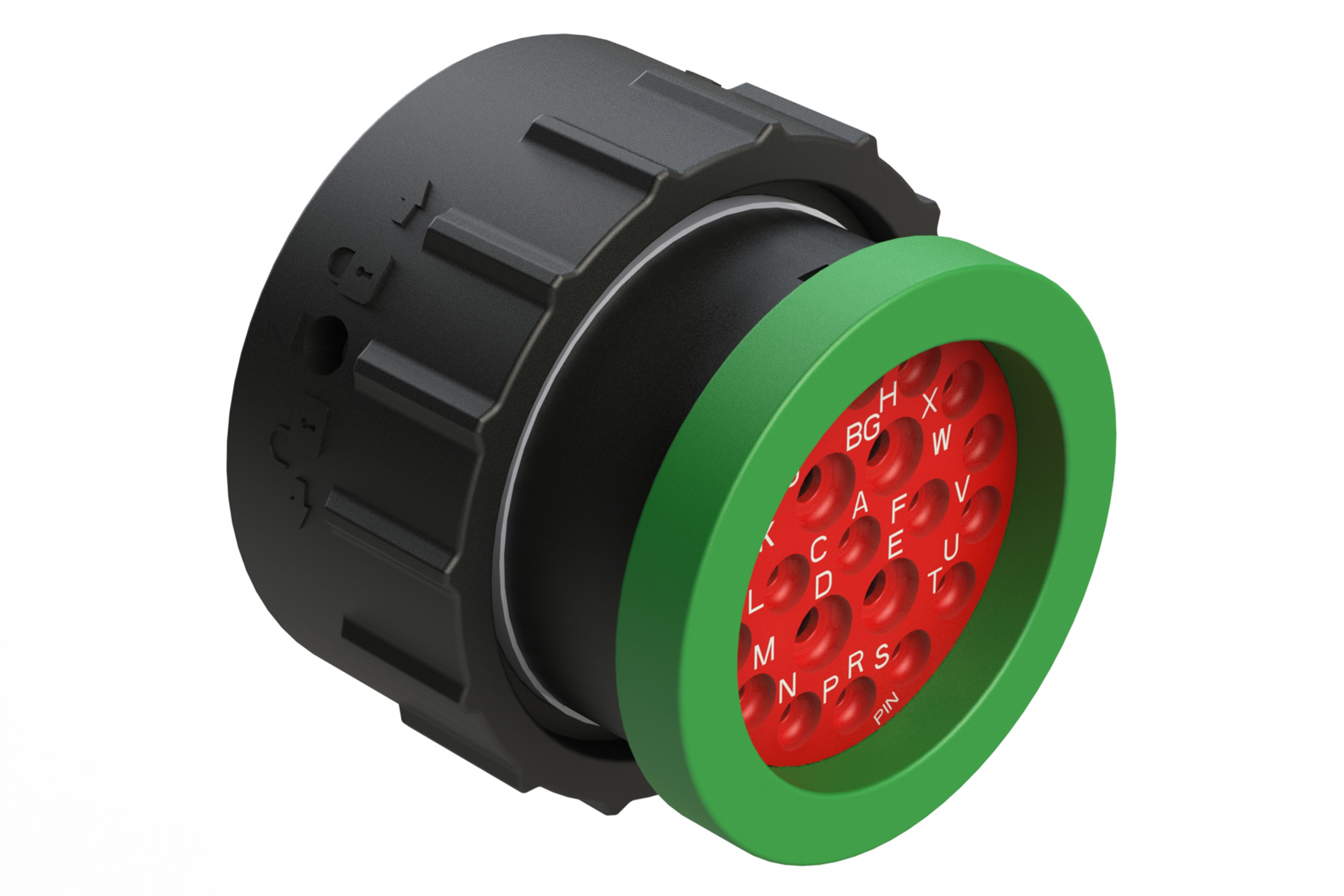

AHDP06-24-21PN-BRA 21 Positions, Plug, Pin, Shell Size 24, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP26-24-21PN-L017
AHDP06-24-21PN-BRA 21 Positions, Plug, Pin, Shell Size 24, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP26-24-21PN-L017
AHDP06-24-21PN-BRA 21 Positions, Plug, Pin, Shell Size 24, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP26-24-21PN-L017
$0.00
Plug
PART NUMBER:
AHDP06-24-21PN-BRA
Datasheet
:
View / Download
3D Model
:
View/Download
Circular
69
25
Plastic
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
21
Contact Size(s):
12,16
Contact Type (Pin/Socket):
Pin
Contacts Included?:
No
Gender:
Male (Reversed)
Wire Range:
10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Amperage:
25A,13A
Housing Material:
Thermoplastic
Voltage:
250 V
Operating Temperature:
-55°C to +125°C
Color:
Black
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
Seal Material:
Silicone Rubber
Seal Diameter:
3.40mm (.134") - 4.32mm (.170") / 2.50mm (.100") - 3.40mm (.134")
Seal Color:
Green
Rear Seal Type:
Normal
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 Megaohm min @ 25°C
RoHS Compliant?:
Yes
Mating Cycle Durability:
>100
Mating Part*:
AHDP04-24-19S* & AHDP02-24-21S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
AHDP06-24-21PN-BRA 21 Positions, Plug, Pin, Shell Size 24, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP26-24-21PN-L017
