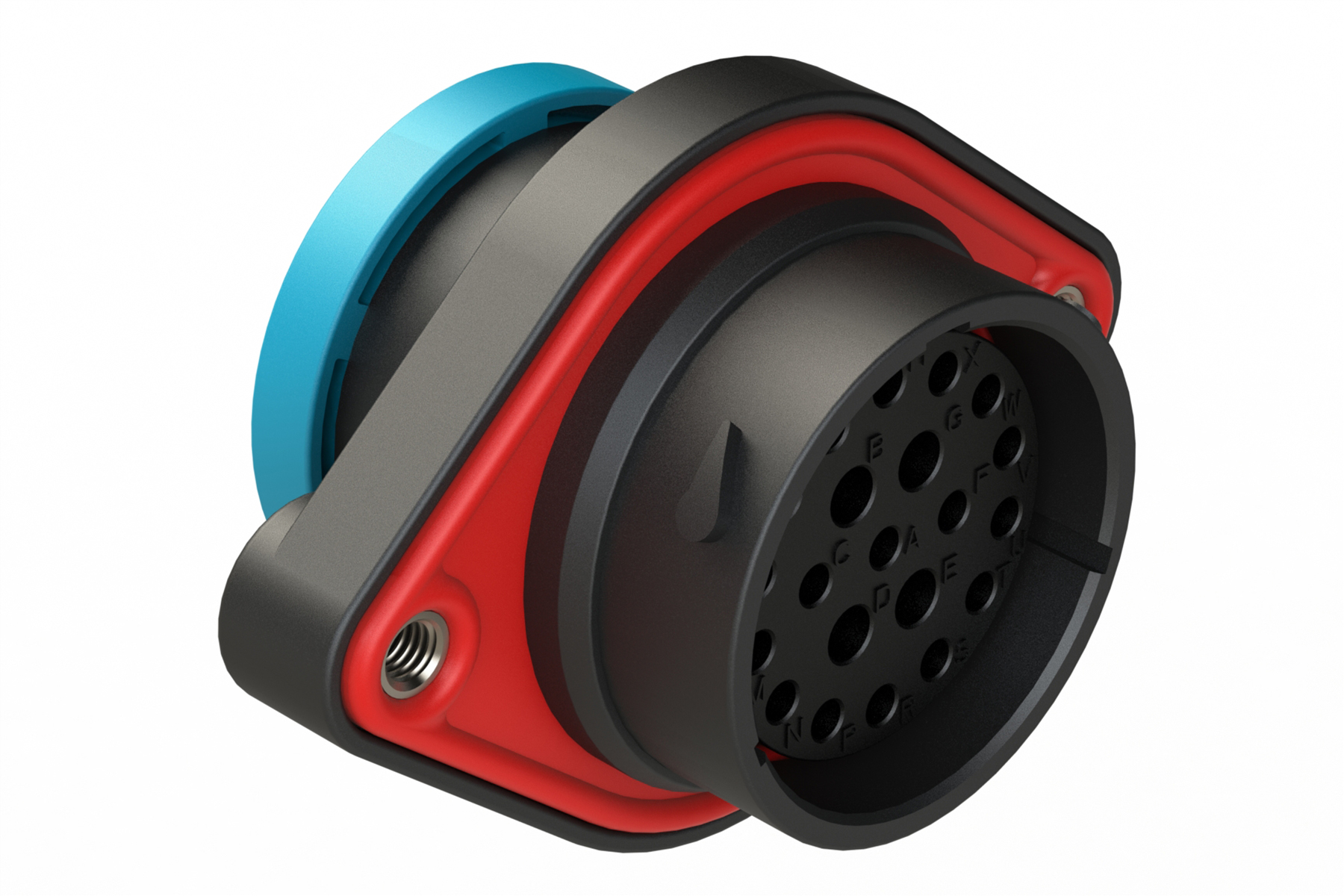

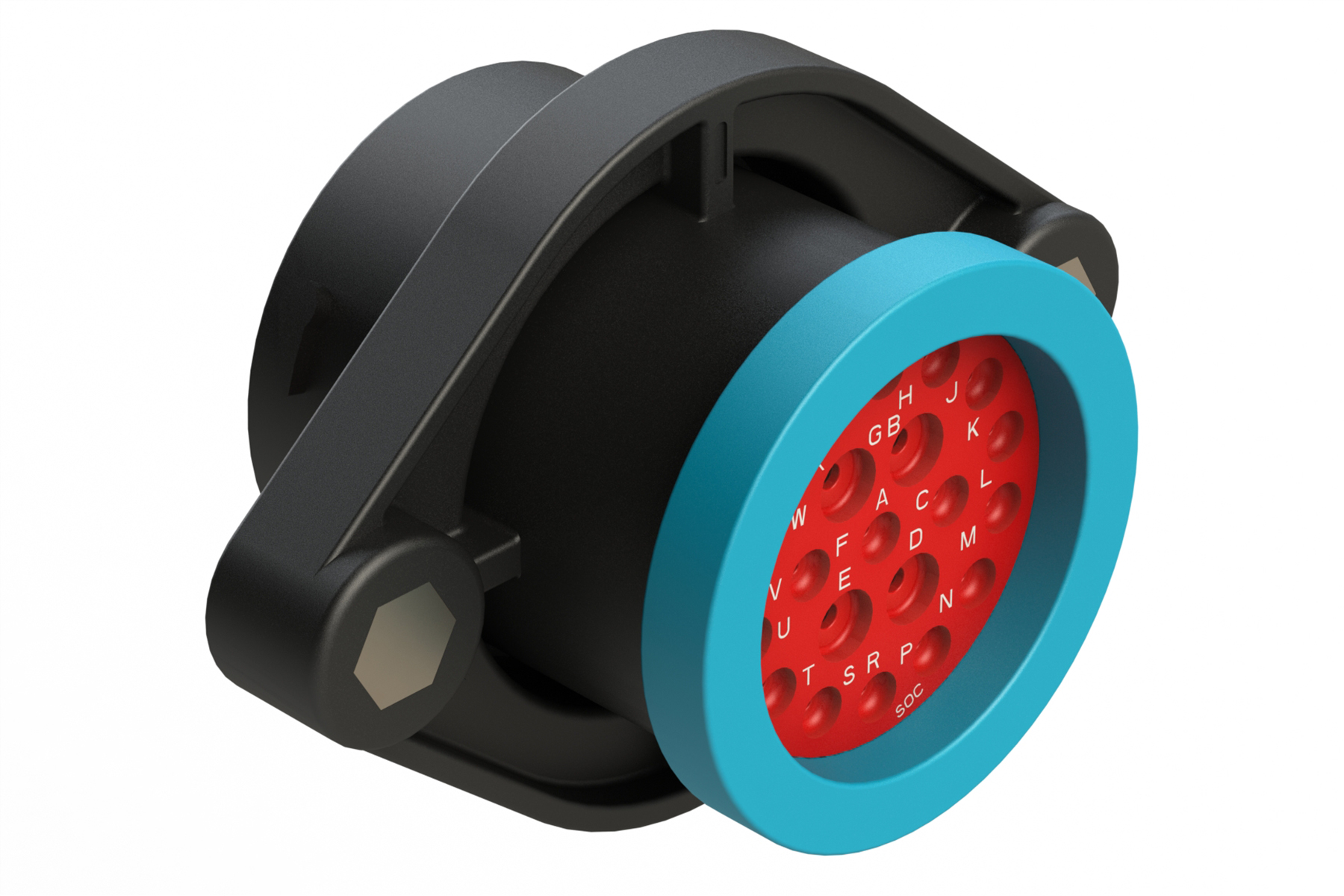

AHDP02-24-21SR-BRA 21 Positions, Sealed Panel Mount Receptacle, Socket, Shell Size 24, Reversed Arrangement, Reduced Diameter Seal, Backshell Ring Adapter (Snap -on)
AHDP02-24-21SR-BRA 21 Positions, Sealed Panel Mount Receptacle, Socket, Shell Size 24, Reversed Arrangement, Reduced Diameter Seal, Backshell Ring Adapter (Snap -on)
AHDP02-24-21SR-BRA 21 Positions, Sealed Panel Mount Receptacle, Socket, Shell Size 24, Reversed Arrangement, Reduced Diameter Seal, Backshell Ring Adapter (Snap -on)
$0.00
Panel Mount Receptacle
PART NUMBER:
AHDP02-24-21SR-BRA
Datasheet
:
View / Download
3D Model
:
View/Download
Circular
69
25
Plastic
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
21
Contact Size(s):
12,16
Contact Type (Pin/Socket):
Socket
Contacts Included?:
No
Gender:
Female (Reversed)
Wire Range:
10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Amperage:
25A,13A
Housing Material:
Thermoplastic
Voltage:
250 V
Operating Temperature:
-55°C to +125°C
Color:
Black
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
Seal Material:
Silicone Rubber
Seal Diameter:
2.46mm (.097") - 4.01mm (.158") / 1.35mm (.053") - 3.05mm (.120")
Seal Color:
Blue
Rear Seal Type:
Reduced Diameter Seal
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 Megaohm min @ 25°C
RoHS Compliant?:
Yes
Mating Cycle Durability:
>100
Mating Part*:
AHDP06-24-21P*
