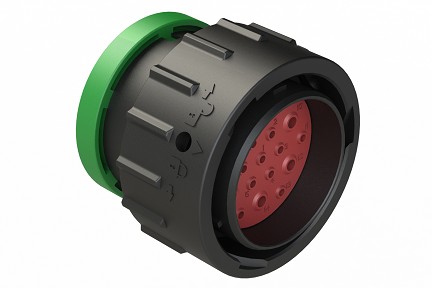

AHDP06-24-19PN-BRA 19 Positions, Plug, Pin, Shell Size 24, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP26-24-19PN-L017
AHDP06-24-19PN-BRA 19 Positions, Plug, Pin, Shell Size 24, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP26-24-19PN-L017
AHDP06-24-19PN-BRA 19 Positions, Plug, Pin, Shell Size 24, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP26-24-19PN-L017
$0.00
Plug
PART NUMBER:
AHDP06-24-19PN-BRA
Datasheet
:
View / Download
3D Model
:
View/Download
Circular
69
25
Plastic
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
19
Contact Size(s):
12,16
Contact Type (Pin/Socket):
Pin
Contacts Included?:
No
Gender:
Male (Reversed)
Wire Range:
10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Amperage:
25A,13A
Housing Material:
Thermoplastic
Voltage:
250 V
Operating Temperature:
-55°C to +125°C
Color:
Black
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
Seal Material:
Silicone Rubber
Seal Diameter:
3.40mm (.134") - 4.32mm (.170") / 2.50mm (.100") - 3.40mm (.134")
Seal Color:
Green
Rear Seal Type:
Normal
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 Megaohm min @ 25°C
RoHS Compliant?:
Yes
Mating Cycle Durability:
>100
Mating Part*:
AHDP04-24-19S* & AHDP02-24-19S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
AHDP06-24-19PN-BRA 19 Positions, Plug, Pin, Shell Size 24, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP26-24-19PN-L017
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Plugs|Connectors~Pin (Male)
Related Items
A114017 Seal Plugs, White, Fits Sizes 12, 16. Comparable to PNs# 114017, 114017-ZZ, 934941000
REQUEST A QUOTE
AHDP02-24-19SN-BRA 19 Positions, Sealed Panel Mount Receptacle, Socket, Shell Size 24, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on)
REQUEST A QUOTE
AHDP02-24-19SN-SRA 19 positions, sealed panel mount receptacle, socket, reversed arrangement, size 24, normal seal, smooth ring adapter
REQUEST A QUOTE
AHDP02-24-19SR-BRA 19 Positions, Sealed Panel Mount Receptacle, Socket, Shell Size 24, Reversed Arrangement, Reduced Diameter Seal, Backshell Ring Adapter (Snap -on)
REQUEST A QUOTE
AHDP02-24-19SR-SRA 19 Position Sealed Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter
REQUEST A QUOTE
AHDP04-24-19SN-BRA 19 Positions, Receptacle, Socket, Shell Size 24, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP24-24-19SN-L017
REQUEST A QUOTE
AHDP04-24-19SN-SRA Size 24 receptacle, 19 positions, socket, reverse arrangement, normal seal, smooth ring adapter. Comparable to PN# HDP24-24-19SN
REQUEST A QUOTE
AHDP04-24-19SN-WTA Size 24 Receptacle with 19 positions, Socket, reverse arrangement, normal seal, wide thread adapter. Comparable to PN# HDP24-24-19SN-L024
REQUEST A QUOTE
AHDP04-24-19SR-BRA 19 Positions, Receptacle, Socket, Shell Size 24, Reversed Arrangement, Reduced Diameter Seal, Backshell Ring Adapter (Snap-on). Comparable to PN# HDP24-24-19SE-L017
REQUEST A QUOTE
AHDP04-24-19SR-SRA 19 Position Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP24-24-19SE
REQUEST A QUOTE
AHDP04-24-19SR-WTA 19 Position Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP24-24-19SE-L024
REQUEST A QUOTE
AHDP06-24-19PN-SRA Size 24 plug, 19 positions, pin, reverse arrangement, normal seal, smooth ring adapter. Comparable to PN# HDP26-24-19PN
REQUEST A QUOTE
AHDP06-24-19PN-WTA Size 24 Plug with 19 positions, Pin, reverse arrangement, normal seal, wide thread adapter. Comparable to PN# HDP26-24-19PN-L024
REQUEST A QUOTE
AHDP06-24-19PR-BRA 19 Positions, Plug, Pin, Shell Size 24, Reversed Arrangement, Reduced Diameter Seal, Backshell Ring Adapter (Snap -on). Comparable to PN# HDP26-24-19PE-L017
REQUEST A QUOTE
AHDP06-24-19PR-SRA 19 Position Plug, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP26-24-19PE
REQUEST A QUOTE
AHDP06-24-19PR-WTA 19 Position Plug, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP26-24-19PE-L024
REQUEST A QUOTE
AHDPBS-10L017-2405 Shell Size 24 Snap Over Straight Backshell Cover for Backshell Ring Adapter Connectors (*-BRA). Comparable to PN# 2428-010-2405
REQUEST A QUOTE
AHDPBS-11L017-2405 Shell Size 24 Snap Over Right Angle Backshell Cover for Backshell Ring Adapter Connectors (*-BRA). Comparable to PN# 2428-011-2405
REQUEST A QUOTE
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
REQUEST A QUOTE
AT11-337-1205 Contact Removal Tool, plastic Size 12
REQUEST A QUOTE
AT60-12-0144 Size 12 Stamped & Formed Pin Contact, Gold Plating, 25A, Wire Range 12-14AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-0144
REQUEST A QUOTE
AT60-12-0166 Size 12 Stamped & Formed Pin Contact, Nickel Plating, 25A, Wire Range 12-14AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-0166
REQUEST A QUOTE
AT60-12-0222 Size 12 Stamped & Formed Pin Contact, Nickel Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-0222
REQUEST A QUOTE
AT60-12-0244 Size 12 Stamped & Formed Pin Contact, Gold Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-1044
REQUEST A QUOTE
AT60-14-0122 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PNs# 1060-14-0122, 845240012
REQUEST A QUOTE
AT60-14-0144 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1060-14-0144
REQUEST A QUOTE
AT60-16-0122 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PNs# 1060-16-0122, 845240008
REQUEST A QUOTE
AT60-16-0144 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1060-16-0144
REQUEST A QUOTE
AT60-16-0622 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PNs# 1060-16-0622, 845240004
REQUEST A QUOTE
AT60-16-0644 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1060-16-0644
REQUEST A QUOTE
AT60-16-0822 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT60-16-0844 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT60-202-16141 Size 16 Machined Pin Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PNs# 0460-202-16141, 936400012
REQUEST A QUOTE
AT60-202-16141-22 Size 16 Machined Pin Contact, Nickel Pated, 13A, Wire Range 22-24AWG
REQUEST A QUOTE
AT60-202-1631 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PNs# 0460-202-1631, 936400014
REQUEST A QUOTE
AT60-202-1631-22 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 22-24AWG
REQUEST A QUOTE
AT60-202-16NKIT Size 16 Machined Contact Kit AT60-202-16141, Pin Contacts, 13A, Wire Range 16-20AWG (10 pieces)
REQUEST A QUOTE
AT60-204-12141 Size 12 Machined Pin Contact, Nickel Plating, Wire Range 12-14AWG. Comparable to PN# 0460-204-12141
REQUEST A QUOTE
AT60-204-12NKIT Size 12 Machined Contact Kit AT60-204-12141. Pin Contacts, Nickel Plating, 25A, Wire Range 12-14 AWG, (10 pieces)
REQUEST A QUOTE
AT60-215-16141 Size 16 Machined Pin Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0460-215-16141
REQUEST A QUOTE
AT60-215-1631 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0460-215-1631
REQUEST A QUOTE
AT60-220-1231 Size 12 Machined Pin Contact, Gold Plating, 25A , Wire Range 12-14AWG. Comparable to PN# 0460-220-1231
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-12 Size 12 Contact Adjustable Crimping Tool
REQUEST A QUOTE
AUTK-16 Size 16 Contact Adjustable Crimping Tool
