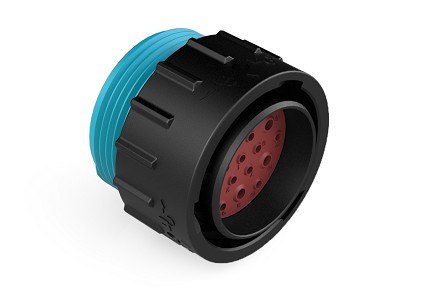

AHDP06-24-19PR-WTA 19 Position Plug, Pin, Shell Size 24, Re

AHDP06-24-19PR-WTA 19 Position Plug, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Wide Thread Adapter. Comparable to PN# HDP26-24-19PE-L024

$0.00

Plug

PART NUMBER: AHDP06-24-19PR-WTA

Datasheet:

View / Download 3D Model:

View/Download

Shell Size: 24
No. of Positions: 19
Contact Size(s): 12,16
Contacts Included: No
Contact Type (Pin/Socket): Pin
Gender: Male (Reversed)
Wire Range: 10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Housing Material: Thermoplastic
Voltage Rating: 250V
Shape: Circular
Color: Black
IP Rating: IP67 & IP69k (in mated condition)
Operating Temperature: -55°C to +125°C
Seal Material: Silicone Rubber
Seal Diameter: 2.46mm (.097") - 4.01mm (.158") / 1.35mm (.053") - 3.05mm (.120")
Seal Color: Red
Rear Seal Type: Reduced Diameter Seal
Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
Insulation Resistance: 1000 megohms at 25°C
Mating Cycle Durability: >100
RoHS Compliant: Yes
Mating Part(s)*: AHDP04-24-19S* & AHDP02-24-19S*
