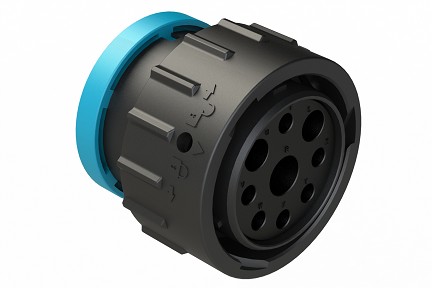

  7. AHDP06-24-09SR-BRA 9 Positions, Plug, Socket, Shell Size 24, Reduced Diameter Seal, Backshell Ring Adapter. Comparable to PN# HDP26-24-9SE-L017
AHDP06-24-09SR-BRA 9 Positions, Plug, Socket, Shell Size 24, Reduced Diameter Seal, Backshell Ring Adapter. Comparable to PN# HDP26-24-9SE-L017
AHDP06-24-09SR-BRA 9 Positions, Plug, Socket, Shell Size 24, Reduced Diameter Seal, Backshell Ring Adapter. Comparable to PN# HDP26-24-9SE-L017

AHDP06-24-09SR-BRA 9 Positions, Plug, Socket, Shell Size 24, Reduced Diameter Seal, Backshell Ring Adapter. Comparable to PN# HDP26-24-9SE-L017

$0.00
Plug
PART NUMBER: AHDP06-24-09SR-BRA
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 9
  • Contact Size(s): 4,8,12
  • Contact Type (Pin/Socket): Socket
  • Contacts Included?: No
  • Gender: Female (Standard)
  • Wire Range: 6 AWG (16.0-13.0mm²), 8-10 AWG (8.0-5.0mm²), 10-14 AWG (6.0-2.0mm²)
  • Amperage: 100A,60A,25A
  • Housing Material: Thermoplastic
  • Voltage: 250 V
  • Operating Temperature: -55°C to +125°C
  • Color: Black
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
  • Seal Material: Silicone Rubber
  • Seal Diameter: 6.63mm (.261") -7.42mm (.292") / 3.43mm (.135") - 5.59mm (.220") / 2.46mm (.097") - 4.01mm (.158")
  • Seal Color: Blue
  • Rear Seal Type: Reduced diameter seal
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @1500 volts AC
  • Insulation Resistance: 1000 Megaohm min @ 25°C
  • RoHS Compliant?: Yes
  • Mating Cycle Durability: >100
  • Mating Part*: AHDP04-24-09P* & AHDP02-24-09P
