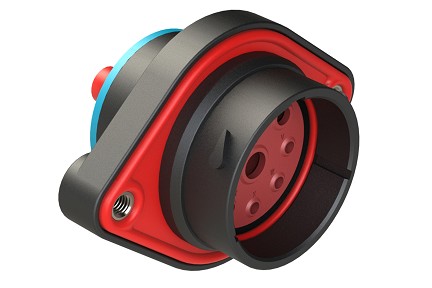

  7. AHDP02-24-09PR-SRA 9 Position Sealed Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter
AHDP02-24-09PR-SRA 9 Position Sealed Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter
AHDP02-24-09PR-SRA 9 Position Sealed Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter

AHDP02-24-09PR-SRA 9 Position Sealed Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter

$0.00
Panel Mount Receptacle
PART NUMBER: AHDP02-24-09PR-SRA
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Size: 24
  • No. of Contacts: 9
  • Contacts Included: FALSE
  • Contact Size: 4,8,12
  • Contact Type (Pin/Socket): Pin
  • Gender: Male (Standard)
  • Wire Range: 6 AWG (16.0-13.0mm²), 8-10 AWG (8.0-5.0mm²), 10-14 AWG (6.0-2.0mm²)
  • Amperage: 100A,60A,25A
  • Volts: 250 V
  • Housing Material: Thermoplastic
  • Operating Temperature: -55°C to +125°C
  • Color: Black
  • IP Rating: IP67 & IP69k (in mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megaohm min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Color: Blue
  • Rear Seal Type: Reduced diameter seal
  • RoHS Compliant: YES
  • Mating Cycle Durability: >100
  • Mating Part*: AHDP06-24-09S*
9 Position Sealed Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue), Smooth Ring Adapter
