  7. AHDP06-24-07PN-BRA 7 Positions, Plug, Pin, Shell Size 24, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on)

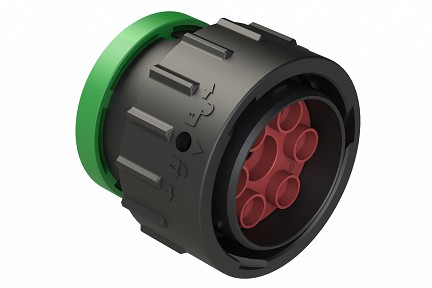

AHDP06-24-07PN-BRA 7 Positions, Plug, Pin, Shell Size 24, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on)
AHDP06-24-07PN-BRA 7 Positions, Plug, Pin, Shell Size 24, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on)

AHDP06-24-07PN-BRA 7 Positions, Plug, Pin, Shell Size 24, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on)

$0.00
Plug
PART NUMBER: AHDP06-24-07PN-BRA
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 24
  • No. of Positions: 7
  • Contact Size(s): 8,12
  • Contact Type (Pin/Socket): Pin
  • Contacts Included?: No
  • Gender: Male (Reversed)
  • Wire Range: 7-10 AWG (10.0-5.0mm²), 10-14 AWG (6.0-2.0mm²)
  • Amperage: 25A,80A
  • Housing Material: Thermoplastic
  • Voltage: 250 V
  • Operating Temperature: -55°C to +125°C
  • Color: Black
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
  • Seal Material: Silicone Rubber
  • Seal Diameter: 4.83mm (.190") - 6.10mm (.240") / 3.43mm (.135") - 4.32mm (.170")
  • Seal Color: Green
  • Rear Seal Type: Normal
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @1500 volts AC
  • Insulation Resistance: 1000 Megaohm min @ 25°C
  • RoHS Compliant?: Yes
  • Mating Cycle Durability: >100
  • Mating Part*: AHDP04-24-07S* & AHDP02-24-07S*
