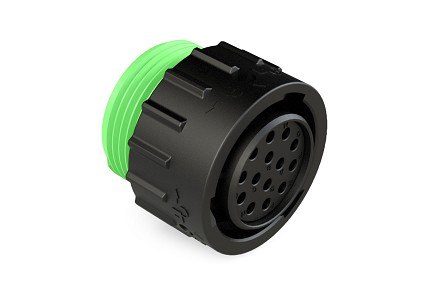

  7. AHDP06-18-14SN-WTA Size 18 Plug with 14 positions, Socket, standard arrangement, normal seal, wide thread adapter. Comparable to PN# HDP26-18-14SN-L024
AHDP06-18-14SN-WTA Size 18 Plug with 14 positions, Socket, standard arrangement, normal seal, wide thread adapter. Comparable to PN# HDP26-18-14SN-L024
AHDP06-18-14SN-WTA Size 18 Plug with 14 positions, Socket, standard arrangement, normal seal, wide thread adapter. Comparable to PN# HDP26-18-14SN-L024

AHDP06-18-14SN-WTA Size 18 Plug with 14 positions, Socket, standard arrangement, normal seal, wide thread adapter. Comparable to PN# HDP26-18-14SN-L024

$0.00
Plug
PART NUMBER: AHDP06-18-14SN-WTA
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 18
  • No. of Positions: 14
  • Contact Size: 16
  • Contacts Included: No
  • Contact Type (Pin/Socket): Socket
  • Gender: Female (Standard)
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Housing Material: Thermoplastic
  • Voltage Rating: 250V
  • Shape: Circular
  • Color: Black
  • IP Rating: IP67 & IP69k (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 2.54mm (.100") - 3.40mm (.134")
  • Seal Color: Red
  • Rear Seal Type: Normal Diameter Seal
  • Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Mating Part(s)*: AHDP04-18-14P* & AHDP02-18-14P*
AHDP06-18-14SN-WTA Size 18 Plug with 14 positions, Socket, standard arrangement, normal seal, wide thread adapter. Comparable to PN# HDP26-18-14SN-L024
