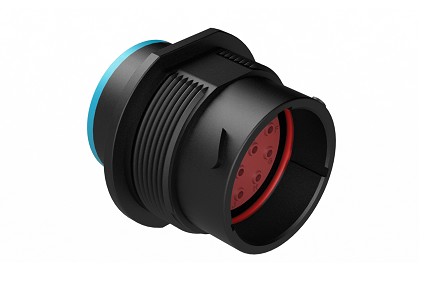

AHDP04-18-14PR-SRA 14 Position Receptacle, Pin, Shell Size 18, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP24-18-14PE
AHDP04-18-14PR-SRA 14 Position Receptacle, Pin, Shell Size 18, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP24-18-14PE

AHDP04-18-14PR-SRA 14 Position Receptacle, Pin, Shell Size 18, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP24-18-14PE

$0.00
receptacle
PART NUMBER: AHDP04-18-14PR-SRA
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 18
  • No. of Positions: 14
  • Contact Size: 16
  • Amperage: 13A
  • Contacts Included: No
  • Contact Type (Pin/Socket): Pin
  • Gender: Male (Standard)
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Housing Material: Thermoplastic
  • Voltage Rating: 250V
  • Shape: Circular
  • Color: Black
  • IP Rating: IP67 & IP69k (in mated condition)
  • Operating Temperature: -55°C to +125°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
  • Seal Color: Red
  • Rear Seal Type: Reduced Diameter Seal
  • Dielectric Value: Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megohms at 25°C
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Mating Part(s)*: AHDP06-18-14S*
14 Position Receptacle, Pin, Shell Size 18, Reduced Diameter Seal (Blue), Smooth Ring Adapter. Comparable to PN# HDP24-18-14PE
