Duramate AHDP 18-14

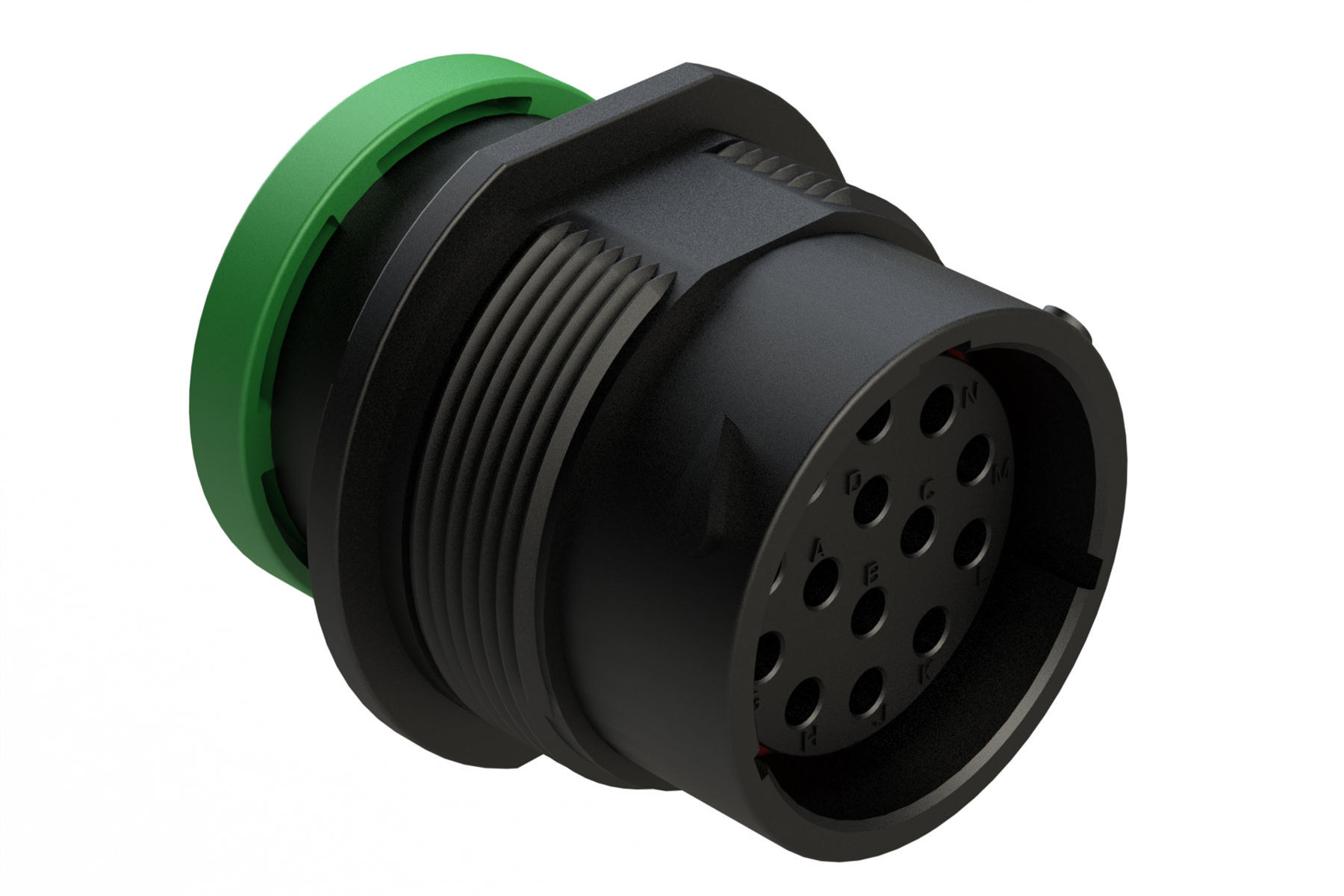

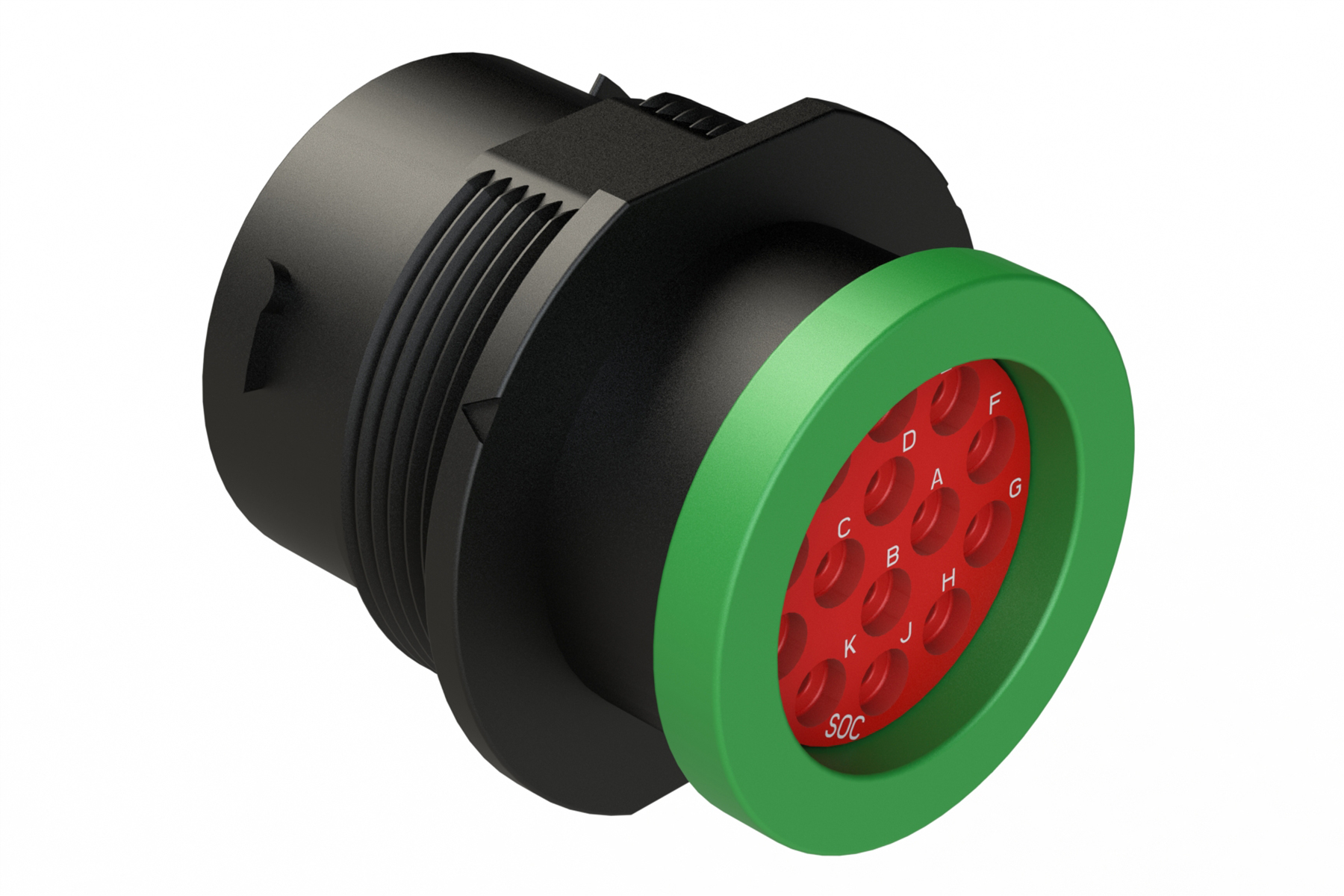

AHDP04-18-14SN-BRA 14 Positions, Receptacle, Socket, Shell Size 18, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap-on). Comparable to PN# HDP24-18-14SN-L017
AHDP04-18-14SN-BRA 14 Positions, Receptacle, Socket, Shell Size 18, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap-on). Comparable to PN# HDP24-18-14SN-L017
AHDP04-18-14SN-BRA 14 Positions, Receptacle, Socket, Shell Size 18, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap-on). Comparable to PN# HDP24-18-14SN-L017
$0.00
Receptacle
PART NUMBER:
AHDP04-18-14SN-BRA
Datasheet
:
View / Download
3D Model
:
View/Download
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
18
No. of Positions:
4
Contact Size(s):
16
Contact Type (Pin/Socket):
Socket
Contacts Included?:
No
Gender:
Female (Reversed)
Wire Range:
14-20 AWG (2.0-0.5mm²)
Amperage:
13A
Housing Material:
Thermoplastic
Voltage:
250 V
Operating Temperature:
-55°C to +125°C
Color:
Black
IP Rating:
IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
Seal Material:
Silicone Rubber
Seal Diameter:
2.54mm (.100") - 3.40mm (.134")
Seal Color:
Green
Rear Seal Type:
Normal
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 Megaohm min @ 25°C
RoHS Compliant?:
Yes
Mating Cycle Durability:
>100
Mating Part*:
AHDP06-18-14P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
AHDP04-18-14SN-BRA 14 Positions, Receptacle, Socket, Shell Size 18, Reversed Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap-on). Comparable to PN# HDP24-18-14SN-L017
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Receptacles|Connectors~Socket (Female)
