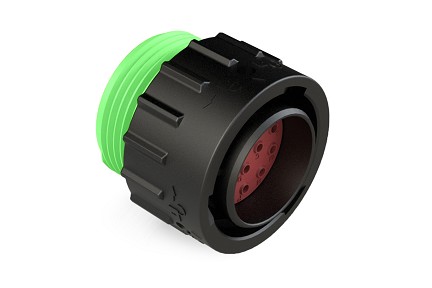

AHDP06-18-14PN-WTA Size 18 Plug with 14 positions, Pin, reversed arrangement, normal seal, wide thread adapter. Comparable to PN# HDP26-18-14PN-L024
AHDP06-18-14PN-WTA Size 18 Plug with 14 positions, Pin, reversed arrangement, normal seal, wide thread adapter. Comparable to PN# HDP26-18-14PN-L024
AHDP06-18-14PN-WTA Size 18 Plug with 14 positions, Pin, reversed arrangement, normal seal, wide thread adapter. Comparable to PN# HDP26-18-14PN-L024
$0.00
Plug
PART NUMBER:
AHDP06-18-14PN-WTA
Datasheet
:
View / Download
3D Model
:
View/Download
14
Circular
69
Plastic
SPECIFICATIONS:
Shell Size:
18
No. of Positions:
14
Contact Size:
16
Contacts Included:
No
Contact Type (Pin/Socket):
Pin
Gender:
Male (Reversed)
Wire Range:
14-20 AWG (2.0-0.5mm²)
Housing Material:
Thermoplastic
Voltage Rating:
250V
Shape:
Circular
Color:
Black
IP Rating:
IP67 & IP69k (in mated condition)
Operating Temperature:
-55°C to +125°C
Seal Material:
Silicone Rubber
Seal Diameter:
2.54mm (.100") - 3.40mm (.134")
Seal Color:
Red
Rear Seal Type:
Normal Diameter Seal
Dielectric Value:
Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms at 25°C
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mating Part(s)*:
AHDP04-18-14S*& AHDP02-18-14S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
AHDP06-18-14PN-WTA Size 18 Plug with 14 positions, Pin, reversed arrangement, normal seal, wide thread adapter. Comparable to PN# HDP26-18-14PN-L024
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
Connectors~Plugs|Connectors~Pin (Male)
