Duramate AHDP 18-06 (6 Pos/2 Used)

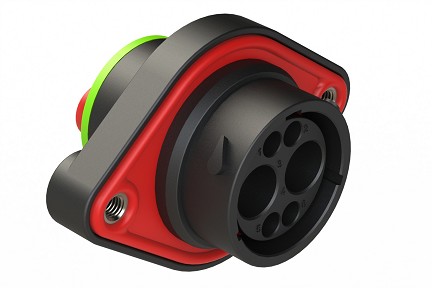

AHDP02-18-06PN-SRAC030 2 positions, sealed panel mount receptacle, pin, size 18, normal seal, smooth ring adapter
AHDP02-18-06PN-SRAC030 2 positions, sealed panel mount receptacle, pin, size 18, normal seal, smooth ring adapter
AHDP02-18-06PN-SRAC030 2 positions, sealed panel mount receptacle, pin, size 18, normal seal, smooth ring adapter
$0.00
Panel Mount Receptacle
PART NUMBER:
AHDP02-18-06PN-SRAC030
Datasheet
:
View / Download
3D Model
:
View/Download
2
Circular
69
100
Plastic
SPECIFICATIONS:
Size:
18
No. of Contacts:
2
Contacts Included:
FALSE
Contact Size:
4
Contact Type (Pin/Socket):
Pin
Gender:
Male (Standard)
Wire Range:
6 AWG (16.0-13.0mm²)
Amperage:
100A
Volts:
250 V
Housing Material:
Thermoplastic
Operating Temperature:
-55°C to +125°C
Color:
Black
IP Rating:
IP67 & IP69k (in mated condition)
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megaohm min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Green
Rear Seal Type:
Normal
RoHS Compliant:
YES
Mating Cycle Durability:
>100
Mating Part*:
AHDP06-18-06S* (* = SEAL TYPE) ( C030 OPTION)
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
2 positions, sealed panel mount receptacle, pin, size 18, normal seal, smooth ring adapter
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~PanelMate
250
Connectors~Receptacles|Connectors~Panel Mount|Connectors~Pin (Male)
Related Items
A114019 Blank Seal Plug, Size 4, 4-6 AWG. Comparable to PN #114019
REQUEST A QUOTE
AHDC06-18 Size 18 Protective Cap for Receptacles. Comparable to PN# HDC26-18
REQUEST A QUOTE
AHDP02-18-06PN-BRAC030 2 Positions, Sealed Panel Mount Receptacle, Pin, Shell Size 18, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap -on)
REQUEST A QUOTE
AHDP06-18-06SN-BRAC030 2 Positions, Plug, Socket, Shell Size 18, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap-on). Comparable to PN# HDP26-18-6SN-C030
REQUEST A QUOTE
AHDP06-18-06SN-SRAC030 Size 18 plug, 2 positions, standard arrangement, socket, normal seal, wide thread adapter. Comparable to PN# HDP26-18-6SN-C030
REQUEST A QUOTE
AHDP06-18-06SN-WTAC030 Size 18 plug, 2 positions, standard arrangement, socket, normal seal, wide thread adapter. Comparable to PN# HDP26-18-6SN-C030
REQUEST A QUOTE
AHDPM18-BT Size 18 Rubber Boot for DuraMate AHDP (SRA only) & AHDM, PVC, Grey. Comparable to PN# HD30-18BT
REQUEST A QUOTE
AHDPM18-BT-BK Size 18 Rubber Boot for DuraMate AHDP (SRA only) & AHDM, PVC, Black. Comparable to PN# HD30-18BT-BK
REQUEST A QUOTE
AT114009 Contact removal tool, Size 4, 6 AWG. Comparable to PN# 114009
REQUEST A QUOTE
AT60-203-04141-4 Size 4 Machined Pin Contact, Nickel Plating, 100A, Wire Range4AWG. Comparable to PN# 5960-203-04141
REQUEST A QUOTE
AT60-204-0490 Size 4 Machined Pin Contact, Nickel Plating, 100A, Wire Range 6AWG. Comparable to PN# 0460-204-0490
REQUEST A QUOTE
WA23-11 Contact Locater, Size 4
REQUEST A QUOTE
