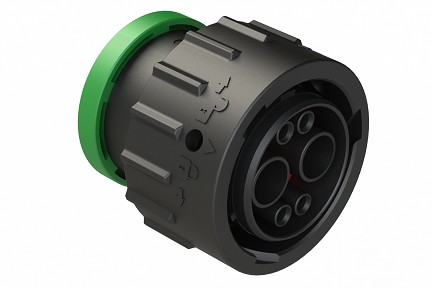

  7. AHDP06-18-06SN-BRAC030 2 Positions, Plug, Socket, Shell Size 18, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap-on). Comparable to PN# HDP26-18-6SN-C030
AHDP06-18-06SN-BRAC030 2 Positions, Plug, Socket, Shell Size 18, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap-on). Comparable to PN# HDP26-18-6SN-C030
AHDP06-18-06SN-BRAC030 2 Positions, Plug, Socket, Shell Size 18, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap-on). Comparable to PN# HDP26-18-6SN-C030

AHDP06-18-06SN-BRAC030 2 Positions, Plug, Socket, Shell Size 18, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap-on). Comparable to PN# HDP26-18-6SN-C030

$0.00
Plug
PART NUMBER: AHDP06-18-06SN-BRAC030
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 18
  • No. of Positions: 2
  • Contact Size(s): 4
  • Contact Type (Pin/Socket): Socket
  • Contacts Included?: No
  • Gender: Female (Standard)
  • Wire Range: 6 AWG (16.0-13.0mm²)
  • Amperage: 100A
  • Housing Material: Thermoplastic
  • Voltage: 250 V
  • Operating Temperature: -55°C to +125°C
  • Color: Black
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
  • Seal Material: Silicone Rubber
  • Seal Diameter: 6.63mm (.261") - 7.41mm (.292")
  • Seal Color: Green
  • Rear Seal Type: Normal
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 Megaohm min @ 25°C
  • RoHS Compliant?: Yes
  • Mating Cycle Durability: >100
  • Mating Part*: AHDP04-18-06P* (* = SEAL TYPE) (C030 OPTION)
AHDP06-18-06SN-BRAC030 2 Positions, Plug, Socket, Shell Size 18, Standard Arrangement, Normal Diameter Seal, Backshell Ring Adapter (Snap-on)
