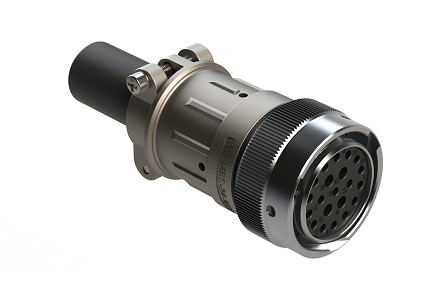

AHDM06-24-21SR-059 Plug Kit, shell size 24, 21 positions, socket, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-21SE-059
AHDM06-24-21SR-059 Plug Kit, shell size 24, 21 positions, socket, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-21SE-059
AHDM06-24-21SR-059 Plug Kit, shell size 24, 21 positions, socket, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-21SE-059
$0.00
Plug Kit
PART NUMBER:
AHDM06-24-21SR-059
Datasheet
:
View / Download
3D Model
:
View/Download
21
Circular
69
25
Metal
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
21
Contacts Included?:
No
Contact Size:
12,16
Contact Type (Pin/Socket):
Socket
Wire Range:
10-14 AWG, 14-20 AWG
Amperage:
25 A, 13 A
Housing Material:
Zinc Alloy, Nickel Plated
Voltage:
250 V
Operating Temperature:
-55°C to +125°C
IP Rating:
IP67 / IP69K (in mated condition)
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms at 25°C
Seal Material:
Silicone Rubber
Seal Diameter:
2.46mm (.097") - 4.01mm (.158"), 1.35mm (.053") - 3.05mm (.120")
RoHS Compliant:
TRUE
Mating Cycle Durability:
>100
Mating Part(s):
AHDM04-24-21PN, AHDM04-24-21PR
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug Kit, shell size 24, 21 positions, socket, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-21SE-059
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Plugs|Connectors~Socket (Female)
