Duramate AHDM 24-21

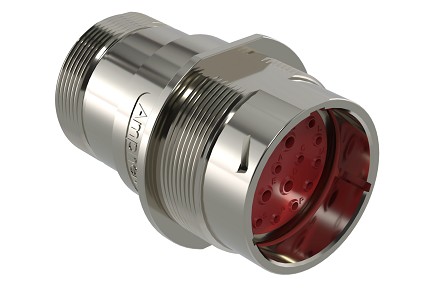

AHDM04-24-21PR-072 21 Position Receptacle, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-21PE-072
AHDM04-24-21PR-072 21 Position Receptacle, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-21PE-072
AHDM04-24-21PR-072 21 Position Receptacle, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-21PE-072
$0.00
Receptacle
PART NUMBER:
AHDM04-24-21PR-072
Datasheet
:
View / Download
21
Circular
69
25
Metal
SPECIFICATIONS:
Shell Size:
24
No. of Positions:
21
Contact Size:
12,16
Contact Type (Pin/Socket):
Pin
Gender:
Male
Contacts Included:
No
Amperage:
25A, 13A
Wire Range:
10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Voltage Rating:
250V
Housing Material:
Zinc Alloy, Nickel Plated
Operating Temperature:
'-55°C TO +125°C
IP Rating:
IP67 & IP69K (in mated condition)
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Seal Diameter:
2.46mm (.097") - 4.01mm (.158"), 1.35mm (.053") - 3.05mm (.120")
Rear Seal Type:
Reduced Diameter Seal
Seal Color Coded Adaptor:
Blue
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mounting Style:
Free Hanging
Mating Part*:
AHDM06-24-21S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
21 Position Receptacle, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-21PE-072
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Receptacles|Connectors~Pin (Male)
Related Items
A112263-90 Nut, AHDM Series, SIZE 24. Comparable to PN# 112263-90
REQUEST A QUOTE
A112264 Lockwasher, AHDM Series, SIZE 24. Comparable to PNs# 112264, 112264-ZZ
REQUEST A QUOTE
AHDC36-18 Protective Cap for Receptacle, AHDM Series, SIZE 18. Comparable to PN# HDC36-18
REQUEST A QUOTE
AHDC36-24 Protective cap for RECEPTACLE, AHDM Series, SIZE 24. Comparable to PN# HDC36-24
REQUEST A QUOTE
AHDM04-24-21PN Receptacle, Size 24, 21 positions, Pin, standard seal, wide thread. Comparable to PN# HD34-24-21PN
REQUEST A QUOTE
AHDM04-24-21PN-059 Receptacle Kit, shell size 24, 21 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD34-24-21PN-059
REQUEST A QUOTE
AHDM04-24-21PN-072 21 Position Receptacle, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-24-21PN-072
REQUEST A QUOTE
AHDM04-24-21PN-L005 21 Position Receptacle, Shell Size 24, Pin, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-21PN-L005
REQUEST A QUOTE
AHDM04-24-21PR Receptacle, Size 24, 21 positions, Pin, reduced diameter seal, wide thread. Comparable to PN# HD34-24-21PE
REQUEST A QUOTE
AHDM04-24-21PR-059 Receptacle Kit, shell size 24, 21 positions, pin, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD34-24-21PE-059
REQUEST A QUOTE
AHDM04-24-21PR-L005 21 Position Receptacle, Shell Size 24, Pin, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-24-21PE-L005
REQUEST A QUOTE
AHDM06-24-21SN Plug, Size 24, 21 positions, Socket, standard seal, wide thread. Comparable to PN# HD36-24-21SN
REQUEST A QUOTE
AHDM06-24-21SN-059 Plug Kit, shell size 24, 21 positions, socket, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-21SN-059
REQUEST A QUOTE
AHDM06-24-21SN-072 21 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-21SN-072
REQUEST A QUOTE
AHDM06-24-21SN-L005 21 Position Plug, Shell Size 24, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-21SN-L005
REQUEST A QUOTE
AHDM06-24-21SR Plug, Size 24, 21 positions, Socket, reduced diameter seal, wide thread. Comparable to PN# HD36-24-21SE
REQUEST A QUOTE
AHDM06-24-21SR-059 Plug Kit, shell size 24, 21 positions, socket, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD36-24-21SE-059
REQUEST A QUOTE
AHDM06-24-21SR-072 21 Position Plug, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-24-21SE-072
REQUEST A QUOTE
AHDM06-24-21SR-L005 21 Position Plug, Shell Size 24, Socket, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-24-21SE-L005
REQUEST A QUOTE
AHDMBS-24-001 Size 24 Straight Backshell, Tie Wrap End Bell
REQUEST A QUOTE
AHDMBS-24-002 Backshell, Size 24, AHDM Series, 2 pc
REQUEST A QUOTE
AHDMBS-24-059 Backshell with cable clamp, size 24
REQUEST A QUOTE
AHDM-BS-24NUT Adapter for tube Backshell, AHDM, SIZE 24,
REQUEST A QUOTE
AHDMBS-24-SM01 Size 24 Backshell, Metal
REQUEST A QUOTE
AHDP-16-04477 Rubber Flange Seal, shell size 24. Comparable to PN# 16-04477
REQUEST A QUOTE
AT11-310-1605 Contact Removal Tool, plastic, Size 16. Comparable to PN# 0411-310-1605
REQUEST A QUOTE
AT11-337-1205 Contact Removal Tool, plastic Size 12
REQUEST A QUOTE
AT60-12-0144 Size 12 Stamped & Formed Pin Contact, Gold Plating, 25A, Wire Range 12-14AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-0144
REQUEST A QUOTE
AT60-12-0166 Size 12 Stamped & Formed Pin Contact, Nickel Plating, 25A, Wire Range 12-14AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-0166
REQUEST A QUOTE
AT60-12-0222 Size 12 Stamped & Formed Pin Contact, Nickel Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-0222
REQUEST A QUOTE
AT60-12-0244 Size 12 Stamped & Formed Pin Contact, Gold Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1060-12-1044
REQUEST A QUOTE
AT60-14-0122 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PNs# 1060-14-0122, 845240012
REQUEST A QUOTE
AT60-14-0144 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 14-18AWG. 4000 pcs. Reel. Comparable to PN# 1060-14-0144
REQUEST A QUOTE
AT60-16-0122 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PNs# 1060-16-0122, 845240008
REQUEST A QUOTE
AT60-16-0144 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 16-18AWG. 4000 pcs. Reel. Comparable to PN# 1060-16-0144
REQUEST A QUOTE
AT60-16-0622 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PNs# 1060-16-0622, 845240004
REQUEST A QUOTE
AT60-16-0644 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 16-20AWG. 4000 pcs. Reel. Comparable to PN# 1060-16-0644
REQUEST A QUOTE
AT60-16-0822 Size 16 Stamped & Formed Pin Contact, Nickel Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT60-16-0844 Size 16 Stamped & Formed Pin Contact, Gold Plating, 13A, Wire Range 20-22AWG. 4000 pcs. Reel
REQUEST A QUOTE
AT60-202-16141 Size 16 Machined Pin Contact, Nickel Plating, 13A, Wire Range 16-20AWG. Comparable to PNs# 0460-202-16141, 936400012
REQUEST A QUOTE
AT60-202-1631 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 16-20AWG. Comparable to PNs# 0460-202-1631, 936400014
REQUEST A QUOTE
AT60-202-16NKIT Size 16 Machined Contact Kit AT60-202-16141, Pin Contacts, 13A, Wire Range 16-20AWG (10 pieces)
REQUEST A QUOTE
AT60-204-12141 Size 12 Machined Pin Contact, Nickel Plating, Wire Range 12-14AWG. Comparable to PN# 0460-204-12141
REQUEST A QUOTE
AT60-204-12NKIT Size 12 Machined Contact Kit AT60-204-12141. Pin Contacts, Nickel Plating, 25A, Wire Range 12-14 AWG, (10 pieces)
REQUEST A QUOTE
AT60-215-16141 Size 16 Machined Pin Contact, Nickel Plating, 13A, Wire Range 14AWG. Comparable to PN# 0460-215-16141
REQUEST A QUOTE
AT60-215-1631 Size 16 Machined Pin Contact, Gold Plating, 13A, Wire Range 14AWG. Comparable to PN# 0460-215-1631
REQUEST A QUOTE
AT60-220-1231 Size 12 Machined Pin Contact, Gold Plating, 25A , Wire Range 12-14AWG. Comparable to PN# 0460-220-1231
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-12 Size 12 Contact Adjustable Crimping Tool
REQUEST A QUOTE
AUTK-16 Size 16 Contact Adjustable Crimping Tool
