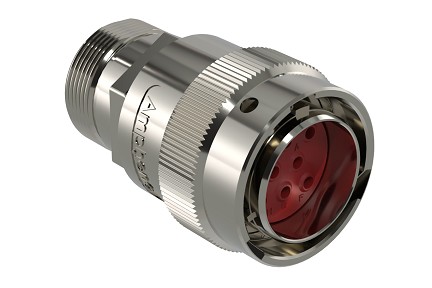

AHDM06-18-08PR-072 8 Position Plug, Shell Size 18, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-18-8PE-072
AHDM06-18-08PR-072 8 Position Plug, Shell Size 18, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-18-8PE-072
AHDM06-18-08PR-072 8 Position Plug, Shell Size 18, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-18-8PE-072
$0.00
Plug
PART NUMBER:
AHDM06-18-08PR-072
Datasheet
:
View / Download
8
Circular
69
25
Metal
SPECIFICATIONS:
Shell Size:
18
No. of Positions:
8
Contact Size:
12
Contact Type (Pin/Socket):
Pin
Gender:
Male
Contacts Included:
No
Amperage:
25A
Wire Range:
10-14 AWG (6.0-2.0mm²)
Voltage Rating:
250V
Housing Material:
Zinc Alloy, Nickel Plated
Operating Temperature:
'-55°C TO +125°C
IP Rating:
IP67 & IP69K (in mated condition)
Shape:
Circular
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms min @ 25°C
Seal Material:
Silicone Rubber
Seal Color:
Red
Seal Diameter:
2.46mm (.097") - 4.01mm (.158")
Rear Seal Type:
Reduced Diameter Seal
Seal Color Coded Adaptor:
Blue
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mounting Style:
Free Hanging
Mating Part*:
AHDM04-18-08S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
8 Position Plug, Shell Size 18, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-18-8PE-072
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Plugs|Connectors~Pin (Male)
