Duramate AHDM 18-08

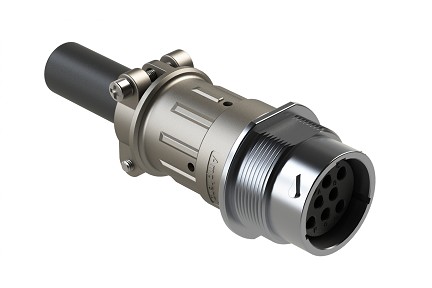

AHDM04-18-08SN-059 Receptacle Kit, shell size 18, 8 positions, socket, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD34-18-8SN-059
AHDM04-18-08SN-059 Receptacle Kit, shell size 18, 8 positions, socket, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD34-18-8SN-059
AHDM04-18-08SN-059 Receptacle Kit, shell size 18, 8 positions, socket, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD34-18-8SN-059
$0.00
Receptacle Kit
PART NUMBER:
AHDM04-18-08SN-059
Datasheet
:
View / Download
3D Model
:
View/Download
8
Circular
69
25
Metal
SPECIFICATIONS:
Shell Size:
18
No. of Positions:
8
Contacts Included?:
No
Contact Size:
12
Contact Type (Pin/Socket):
Socket
Wire Range:
10-14AWG
Amperage:
25 A
Housing Material:
Zinc Alloy, Nickel Plated
Voltage:
250 V
Operating Temperature:
-55°C to +125°C
IP Rating:
IP67 / IP69K (in mated condition)
Dielectric Value:
Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms at 25°C
Seal Material:
Silicone Rubber
Seal Diameter:
3.40mm (.134") - 4.32mm (.170")
RoHS Compliant:
TRUE
Mating Cycle Durability:
>100
Mating Part(s):
AHDM06-18-08PN, AHDM06-18-08PR
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle Kit, shell size 18, 8 positions, socket, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD34-18-8SN-059
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments
A Series~DuraMate
250
Connectors~Receptacles|Connectors~Socket (Female)
Related Items
A114020-90 Nut, AHDM Series, SIZE 18. Comparable to PN# 114020-90
REQUEST A QUOTE
A114021 Lockwasher, AHDM Series, SIZE 18. Comparable to PN# 114021
REQUEST A QUOTE
AHDC36-18 Protective Cap for Receptacle, AHDM Series, SIZE 18. Comparable to PN# HDC36-18
REQUEST A QUOTE
AHDM04-18-08SN Receptacle, Size 18, 8 positions, Socket, standard seal, wide thread. Comparable to HD34-18-8SN
REQUEST A QUOTE
AHDM04-18-08SN-072 8 Position Receptacle, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-18-8SN-072
REQUEST A QUOTE
AHDM04-18-08SN-L005 8 Position Receptacle, Shell Size 18, Socket, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-18-8SN-L005
REQUEST A QUOTE
AHDM04-18-08SR Receptacle, Size 18, 8 positions, Socket, reduced diameter seal, wide thread. Comparable to HD34-18-8SE
REQUEST A QUOTE
AHDM04-18-08SR-059 Receptacle Kit, shell size 18, 8 positions, socket, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD34-18-8SE-059
REQUEST A QUOTE
AHDM04-18-08SR-072 8 Position Receptacle, Shell Size 18, Socket, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD34-18-8SE-072
REQUEST A QUOTE
AHDM04-18-08SR-L005 8 Position Receptacle, Shell Size 18, Socket, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD34-18-8SE-L005
REQUEST A QUOTE
AHDM06-18-08PN Plug, Size 18, 8 positions, Pin, standard seal, wide thread. Comparable to PN# HD36-18-8PN
REQUEST A QUOTE
AHDM06-18-08PN-059 Plug Kit, shell size 18, 8 positions, pin, standard seal, wide thread, cable clamp backshell. Comparable to PN# HD36-18-8PN-059
REQUEST A QUOTE
AHDM06-18-08PN-072 8 Position Plug, Shell Size 18, Pin, Normal Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-18-8PN-072
REQUEST A QUOTE
AHDM06-18-08PN-L005 8 Position Plug, Shell Size 18, Pin, Normal Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-18-8PN-L005
REQUEST A QUOTE
AHDM06-18-08PR Plug, Size 18, 8 positions, Pin, reduced diameter seal, wide thread.Comparable to PN# HD36-18-8PE
REQUEST A QUOTE
AHDM06-18-08PR-059 Plug Kit, shell size 18, 8 positions, pin, reduced diameter seal, wide thread, cable clamp backshell. Comparable to PN# HD36-18-8PE-059
REQUEST A QUOTE
AHDM06-18-08PR-072 8 Position Plug, Shell Size 18, Pin, Reduced Seal, Wide Thread Adapter, Backshell with Weep Holes. Comparable to PN# HD36-18-8PE-072
REQUEST A QUOTE
AHDM06-18-08PR-L005 8 Position Plug, Shell Size 18, Pin, Reduced Seal, Wide Thread Adapter, Backshell without Weep Holes. Comparable to PN# HD36-18-8PE-L005
REQUEST A QUOTE
AHDMBS-18-001 Size 18 Straight Backshell, Tie wrap End Bell
REQUEST A QUOTE
AHDMBS-18-002 Backshell, Size 18, AHDM Series, 2 pc.
REQUEST A QUOTE
AHDMBS-18-059 Backshell with camble clamp, size 18
REQUEST A QUOTE
AHDM-BS-18NUT Adapter for tube Backshell, AHDM, SIZE 18,
REQUEST A QUOTE
AHDMBS-18-SM01 Size 18 Backshell, Metal
REQUEST A QUOTE
AHDP-16-04978 Rubber Flange Seal, shell size 18. Comparable to PN# 16-04978
REQUEST A QUOTE
AT11-337-1205 Contact Removal Tool, plastic Size 12
REQUEST A QUOTE
AT62-12-0144 Size 12 Stamped & Formed Socket Contact, Gold Plating, 25A, Wire Range 12-14AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0144
REQUEST A QUOTE
AT62-12-0166 Size 12 Stamped & Formed Socket Contact, Nickel Plating, 25A, Wire Range 12-14AWG. Comparable to PN# 1062-12-0166
REQUEST A QUOTE
AT62-12-0222 Size 12 Stamped & Formed Socket Contact, Nickel Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0222
REQUEST A QUOTE
AT62-12-0244 Size 12 Stamped & Formed Socket Contact, Gold Plating, 25A, Wire Range 10-12AWG. 2000 pcs. Reel. Comparable to PN# 1062-12-0244
REQUEST A QUOTE
AT62-203-12141 Size 12 Machined Socket Contact, Nickel Plating, 25A, 12-14AWG. Comparable to PN# 0462-203-12141
REQUEST A QUOTE
AT62-210-1231 Size 12 Machined Socket Contact, Gold Plating, 25A, Wire Range 12-14AWG. Comparable to PN# 0462-210-1231
REQUEST A QUOTE
AUTK-100 Universal Heavy Duty Contact Crimping Tool Kit for Crimping Size 12,16,20 Machined Contacts, Wire Stripping, Positioners, Gauge and Extraction Tool
REQUEST A QUOTE
AUTK-12 Size 12 Contact Adjustable Crimping Tool
REQUEST A QUOTE
