  7. TM1PBJ 1/4" Phone Switch Plug, Male, Nickel Plated, Large Cable Clamp, Black Shell
TM1PBJ 1/4
TM1PBJ 1/4' Phone Switch Plug, Male, Nickel Plated, Large Cable Clamp, Black Shell

TM1PBJ 1/4" Phone Switch Plug, Male, Nickel Plated, Large Cable Clamp, Black Shell

$0.00

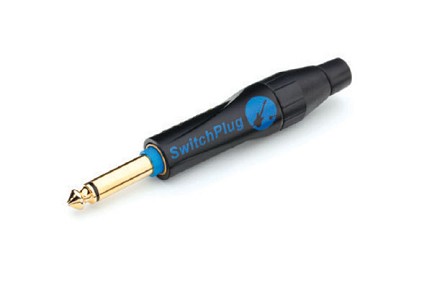

1/4" Phone Switch Plug
PART NUMBER: TM1PBJ
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 1
  • Current Carrying Capacity: 10A (Depends on Mating Connector and Cable)
  • Housing Material: Diecast Zinc Alloy EZDA No.3
  • Finish: Black
  • IP Rating: IP40
  • Termination: Solder
  • Operating Temperature: -25°C to +75°C (-13°F to + 167°F)
  • Mating Cycles: 1000
  • Flammability Rating: UL94V-0 or UL94-HB
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Application(s): Audio & Lighting
1/4" Phone Switch Plug, Male, Nickel Plated, Large Cable Clamp, Black Shell
