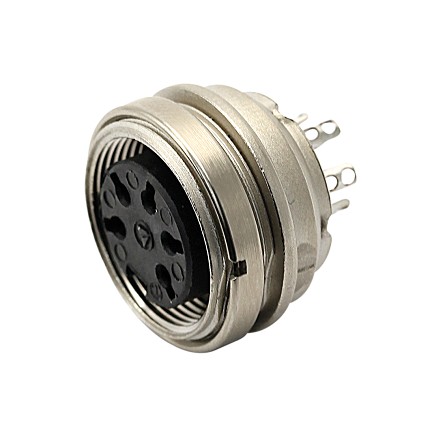

  6. T 3638 150 - M16 Rear mounting female receptacle with ring nut. contacts Contacts sold separately.
T 3638 150 - M16 Rear mounting female receptacle with ring nut. contacts Contacts sold separately.
T 3638 150 - M16 Rear mounting female receptacle with ring nut. contacts Contacts sold separately.

T 3638 150 - M16 Rear mounting female receptacle with ring nut. contacts Contacts sold separately.

$0.00
Female Receptacle
PART NUMBER: T3638150
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 12
  • Current Rating: 3A
  • Termination: Crimp
  • Locking: Screw
  • Insert: Thermoplastic
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP40
  • Insertion/Withdrawal Force: 50 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 150V
  • Rated Voltage per UL 1977: 60V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Mount: Rear
  • Operating Temperature: -40²C to +100²C
  • Mating Part(s): T3637550,T3637150,T3635552,T3635556
  • Size: M16
Rear mounting female receptacle with ring nut (hex nut available upon request). 12 contacts. Screw locking according to DIN EN 60130-9 / IEC 60130-9. Contacts sold separately. Termination: solder or crimp.

Related Items

HN 02 010 0158 1 - 1.0mm socket contact, silver plated, wire gauge 0.25-0.09mm². Stamped contacts on reel, 2000 pcs
HN 02 010 0158 1 - 1.0mm socket contact, silver plated, wire gauge 0.25-0.09mm². Stamped contacts on reel, 2000 pcs
REQUEST A QUOTE
HN 02 010 0158 2 - 1.0mm socket contact, gold plated, wire gauge 0.25-0.09mm². Stamped contacts on reel, 2000 pcs
HN 02 010 0158 2 - 1.0mm socket contact, gold plated, wire gauge 0.25-0.09mm². Stamped contacts on reel, 2000 pcs
REQUEST A QUOTE
T 3635 552 - M16 Male straight cable connector with internal strain relief and metal locking ring. 12 contacts, 6-8mm cable diameter Contacts sold separately.
T 3635 552 - M16 Male straight cable connector with internal strain relief and metal locking ring. 12 contacts, 6-8mm cable diameter Contacts sold separately.
REQUEST A QUOTE
T 3636 055 - M16 Female right angled cable connector with internal strain relief and metal locking ring. 12 contacts, 4-6mm cable diameter. Contacts sold separately.
T 3636 055 - M16 Female right angled cable connector with internal strain relief and metal locking ring. 12 contacts, 4-6mm cable diameter. Contacts sold separately.
REQUEST A QUOTE
T 3636 551 - M16 Female straight cable connector with internal strain relief and metal locking ring. 12 contacts, 4-6mm cable diameter. Contacts sold separately.
T 3636 551 - M16 Female straight cable connector with internal strain relief and metal locking ring. 12 contacts, 4-6mm cable diameter. Contacts sold separately.
REQUEST A QUOTE
T 3636 552 - M16 Female straight cable connector with internal strain relief and metal locking ring. 12 contacts, 6-8mm cable diameter. Contacts sold separately.
T 3636 552 - M16 Female straight cable connector with internal strain relief and metal locking ring. 12 contacts, 6-8mm cable diameter. Contacts sold separately.
REQUEST A QUOTE
T 3637 150 - M16 Rear mounting male receptacle with ring nut. contacts. Contacts sold separately.
T 3637 150 - M16 Rear mounting male receptacle with ring nut. contacts. Contacts sold separately.
REQUEST A QUOTE
T 3637 550 - M16 Front mounting male receptacle with ring nut. contacts Contacts sold separately.
T 3637 550 - M16 Front mounting male receptacle with ring nut. contacts Contacts sold separately.
REQUEST A QUOTE
T 3638 550 - M16 Front mounting female receptacle with ring nut. contacts Contacts sold separately.
T 3638 550 - M16 Front mounting female receptacle with ring nut. contacts Contacts sold separately.
REQUEST A QUOTE
TN 02 010 0158 1 - Stamped Female contacts on reel. Silver plated, 1.0 mm
TN 02 010 0158 1 - Stamped Female contacts on reel. Silver plated, 1.0 mm
REQUEST A QUOTE
TN 02 010 0158 2 - Stamped female contacts on reel. Gold plated, 1.0 mm
TN 02 010 0158 2 - Stamped female contacts on reel. Gold plated, 1.0 mm
REQUEST A QUOTE
VN 02 010 0158 1 - Stamped Female contacts. Silver plated, 1.0 mm
VN 02 010 0158 1 - Stamped Female contacts. Silver plated, 1.0 mm
REQUEST A QUOTE
VN 02 010 0158 2 - Crimp Female contacts.. Gold plated, 1.0mm
VN 02 010 0158 2 - Crimp Female contacts.. Gold plated, 1.0mm
REQUEST A QUOTE
